Mesh From Facet Count
00000000-e6db-4d45-8b2b-97ed390af918

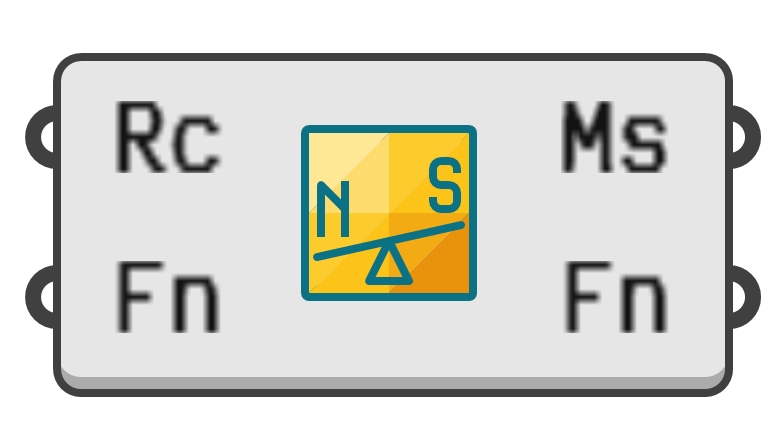

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a rectangular mesh with an approximate number of squarish facets. This component tries to balance the oftentimes opposing goals of creating a mesh with a specific number of facets and creating a mesh with square facets.

Input parameters:

  1. Rc → Rectangular boundary for mesh.
  2. Fn → Desired number of facets.

Output parameters:

  1. Ms → Rectangular mesh.
  2. Fn → Actual facet count used in mesh.
