ComponentAuto-generatedIntersect
Mesh-Self
00000000-de39-4b56-ad14-dca7cea515bd

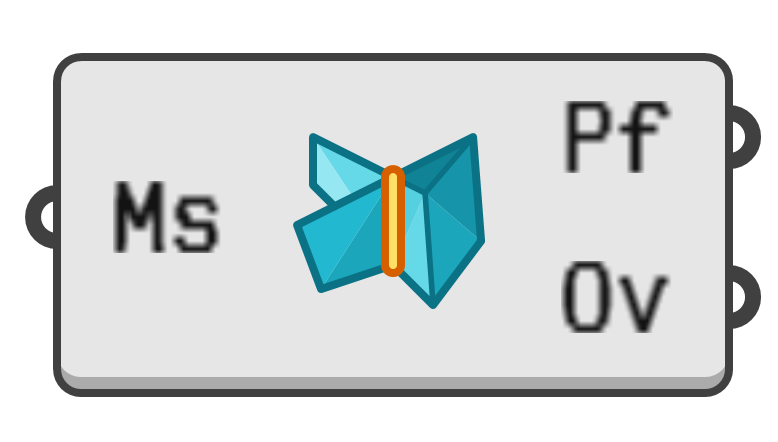

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the areas where a mesh intersects itself.

Input parameters:

  1. Ms → Mesh to evaluate.

Output parameters:

  1. Pf → Polylines tracking where the mesh perforates itself.
  2. Ov → Polylines surrounding the self overlapping regions.
