Arc From Angles
00000000-da19-4be0-a80d-2ebf2f4af349

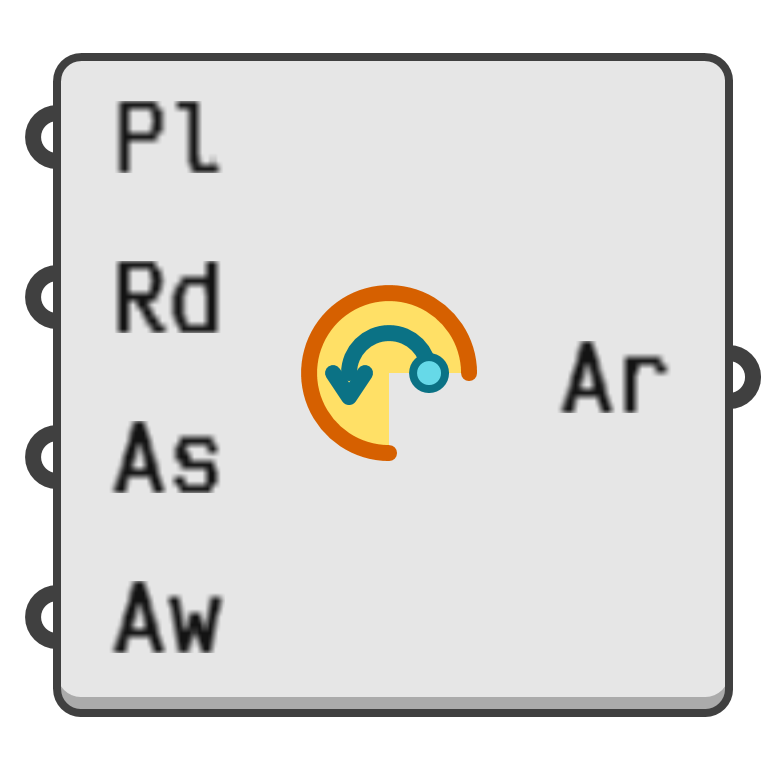

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create an arc out of start and sweep angles.

Input parameters:

  1. Pl → Arc base plane.
  2. Rd → Arc radius.
  3. As → Arc start angle, measured anti-clockwise from the base plane's x-axis
  4. Aw → Arc sweep angle, measured anti-clockwise from the start angle.

Output parameters:

  1. Ar → Arc defined by start and sweep angles.
