Curve To Polyline
00000000-d5b8-4ac1-b718-f8e0e97a76fd

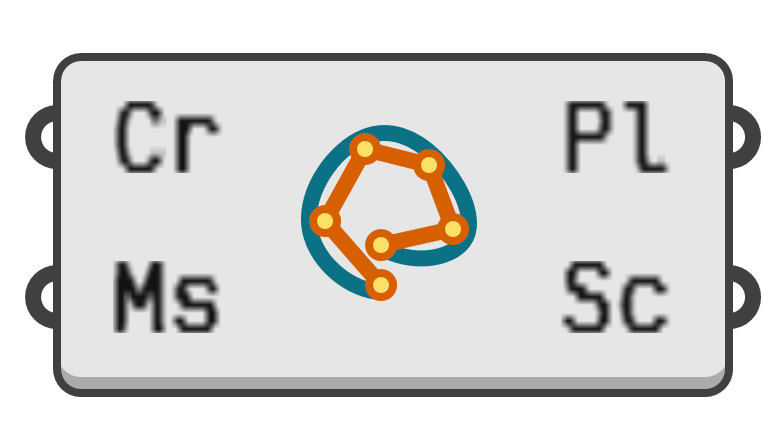

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Convert a curve into a polyline.

Input parameters:

  1. Cr → Curve to discretise.
  2. Ms → Main segment count to use in the polyline approximation.
  3. Dd → Maximum distance from the curve to the polyline.
  4. Ad → Maximum angle between unit tangents at adjacent vertices.
  5. E- → Minimum edge length.
  6. E+ → Maximum edge length.
  7. Cl → Maximum ratio between the distance from the chord midpoint to the curve, and the length of chord.
  8. Ar → Maximum ratio between the length of the longest chord and the length of the shortest chord.
  9. Ss → Number of subsegments between each main segment.

Output parameters:

  1. Pl → Polyline approximation of the curve.
  2. Sc → Number of segments in the polyline.
