Plane N Points
00000000-d468-4bd8-b335-21a640bdd819

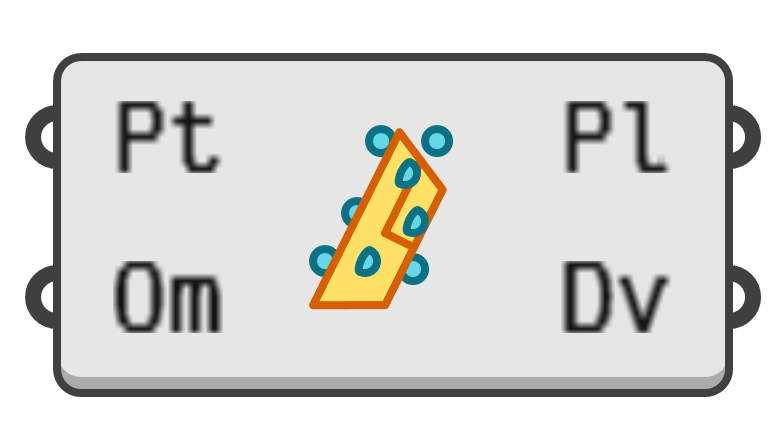

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a best fit plane through a cloud of points.

Input parameters:

  1. Pt → Points to fit.
  2. Om → Method for placing plane origin.
    • 0 → Bounding Box
    • 1 → Spanning Circle
    • 2 → Average
    • 3 → Huber Centre
    • 4 → Geometric Median
    • 5 → Coordinate Median
    • 6 → Least Squareroot

Output parameters:

  1. Pl → Best fit plane through all points.
  2. Dv → Maximum deviation between best fit plane and furthest point.
