grasshopper2 Rhinorhino3d.com
ComponentAuto-generatedSurface
Surface Wireframe
00000000-d2c0-405a-86f7-0e641de5be5a

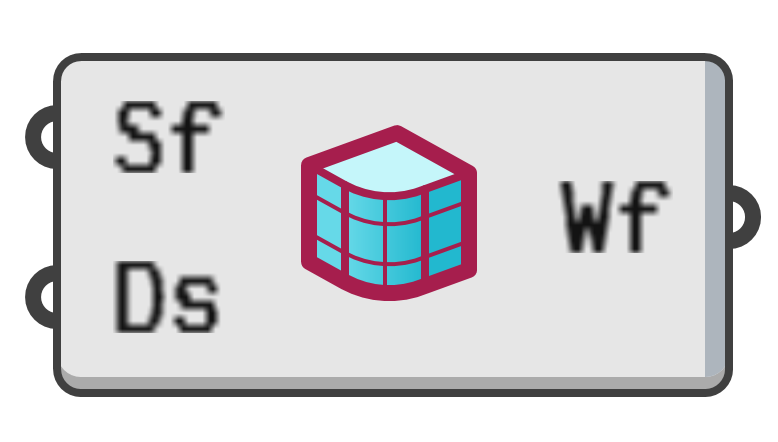

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the wireframe curves of a surface.

Input parameters:

  1. Sf → Surface for wireframe extraction.
  2. Ds → Wireframe density. Values -2, -1, and 0 have special meaning, while positive integers determine the isocurve density.

Output parameters:

  1. Wf → Complete wireframe containing all the curves implied by the given density.
  2. En → All the naked edges in the wireframe.
  3. Ec → All the sharp interior edges in the wireframe.
  4. Et → All the smooth interior edges in the wireframe.
  5. Cu → All isocurves in the u-direction in the wireframe.
  6. Cv → All isocurves in the v-direction in the wireframe.
