Vector Angle 2D
00000000-cef7-427f-85e7-e105604b9a24

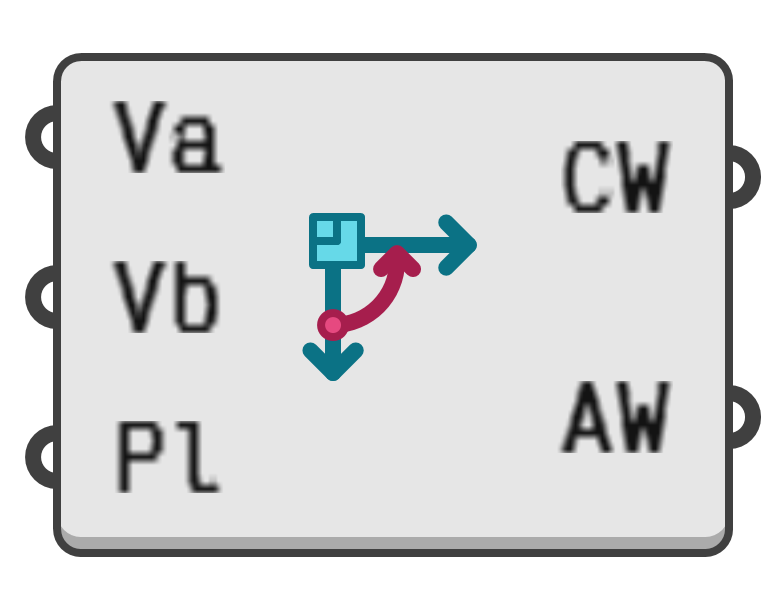

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Measure the angle between vectors in a plane.

Input parameters:

  1. Va → First vector for angle measurement.
  2. Vb → Second vector for angle measurement.
  3. Pl → Plane in which to measure angles.

Output parameters:

  1. CW → Angle from A to B in the clockwise direction on the plane.
  2. AW → Angle from B to A in the anti-clockwise direction on the plane.
