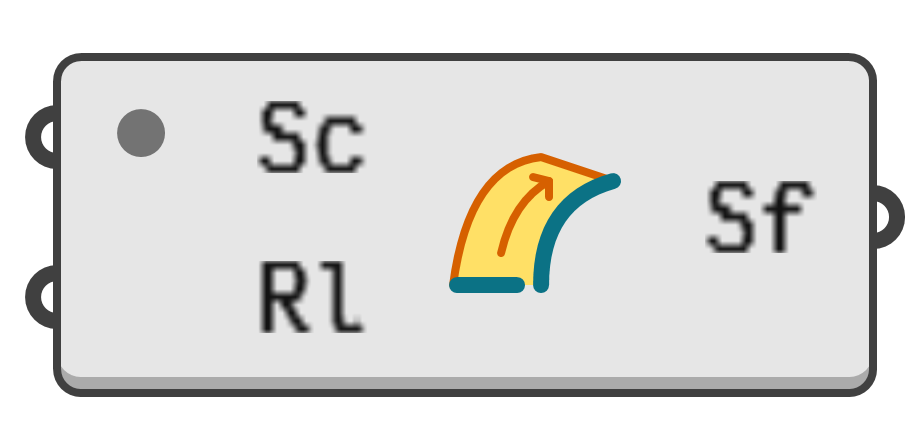

Sweep From Rail
00000000-ce11-4e12-a6b7-366a8fac4eca
object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a surface by sweeping a shape curve over a rail curve.

Input parameters:

  1. Sc → Sweep section curves.
  2. Rl → Sweep rail curve.
  3. Nr → Optional frame normal vector. When set, the sweep type is 'road-like' rather than 'free-form'.
  4. Gl → If true, the blending between adjacent sections is .
  5. Mi → If true, miters due to kinks in the rail curve become trimmed surfaces.
  6. Pa → Optional start point of lofted surface.
  7. Pb → Optional end point of lofted surface.
  8. Rb → Optional rebuild control point count. If omitted, the resulting surface will not be rebuild.
  9. Rf → Optional refit tolerance. If omitted, the resulting surface will not be refitted.

Output parameters:

  1. Sf → Sweep surface based on rail and shape curves.
