Group By Grid
00000000-c7a4-4f51-8d2b-9e3a6c1f0b48

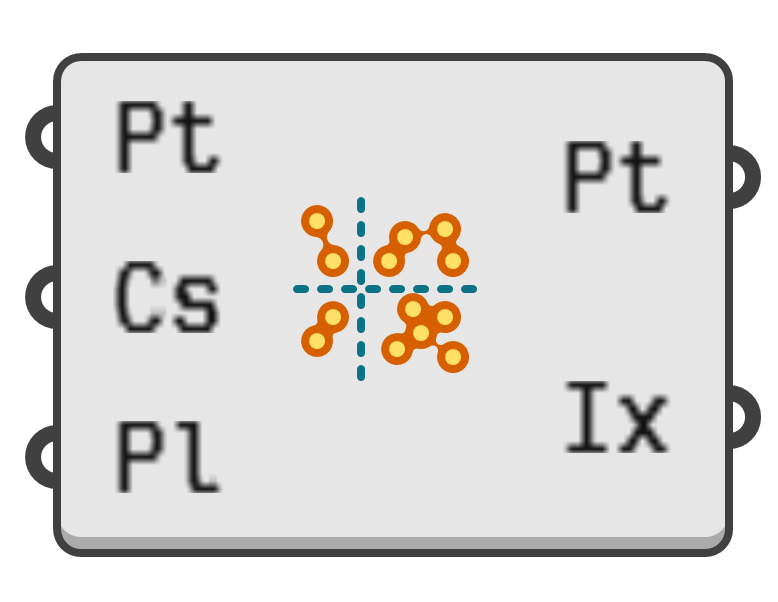

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Cluster points that fall into the same grid cell.

Input parameters:

  1. Pt → Points to group.
  2. Cs → Side length of each grid cell. Points sharing a cell form a group.
  3. Pl → Optional plane the grid is aligned to. When omitted, the best-fit plane through the points is used.

Output parameters:

  1. Pt → Points in each group, one branch per group.
  2. Ix → Indices of points in each group (relative to the input cloud), one branch per group.
