ComponentAuto-generatedMesh
Mesh Shadows
00000000-c5ec-44cd-9f8b-f4c871613104

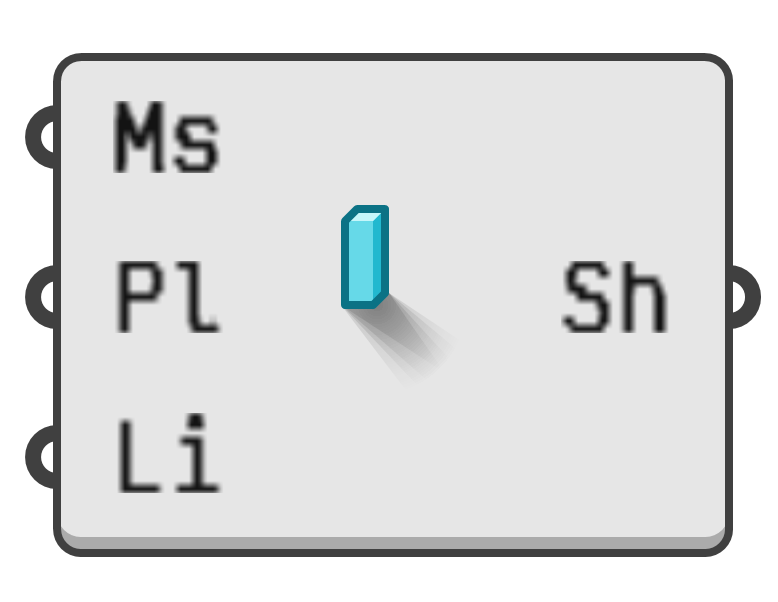

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the shadow outlines of a mesh as cast onto a plane.

Input parameters:

  1. Ms → Mesh to shade.
  2. Pl → Plane to cast onto.
  3. Li → Direction of light.

Output parameters:

  1. Sh → Shadow outlines on plane.
