grasshopper2 Rhinorhino3d.com
ComponentAuto-generatedSurface
Surface From 5 Points
00000000-c4a9-4c52-b8e6-84ff5737d587

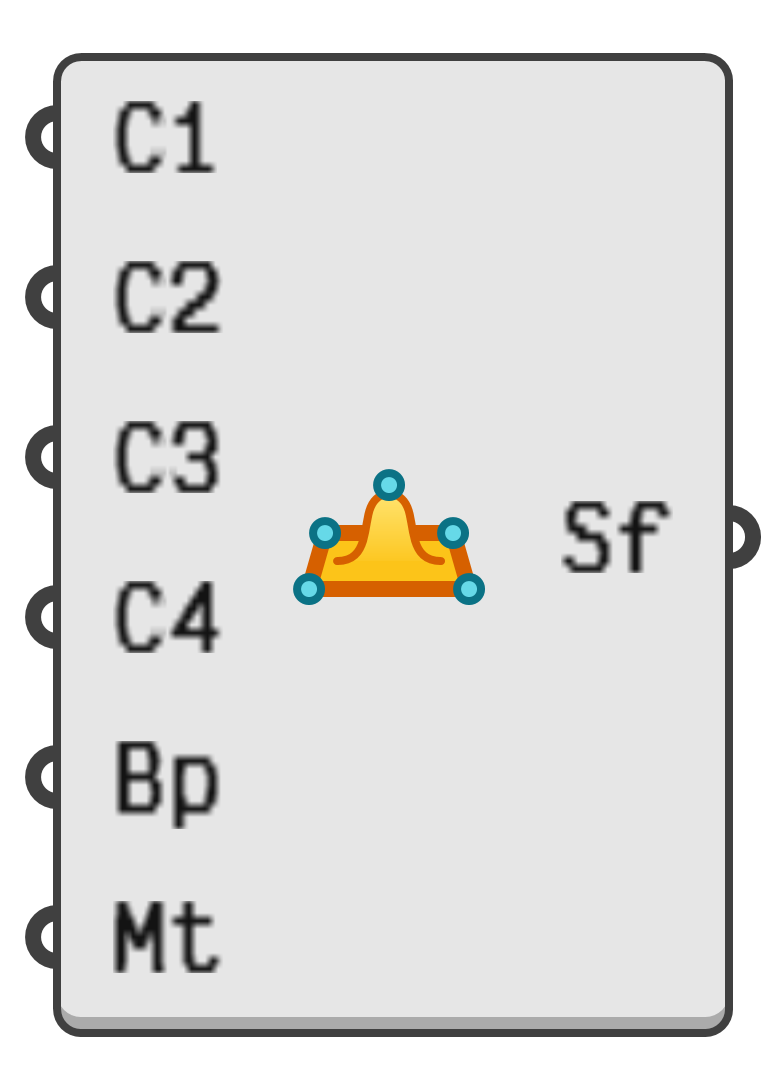

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a surface from four corner points and a bulge point.

Input parameters:

  1. C1 → First corner of surface.
  2. C2 → Second corner of surface.
  3. C3 → Third corner of surface.
  4. C4 → Fourth corner of surface.
  5. Bp → Bulge point on surface interior.
  6. Mt → Surface construction method.
    • 0 → Natural
    • 1 → Arched

Output parameters:

  1. Sf → Surface from corner and bulge points.
