Arc-Arc
00000000-c472-481d-bb4e-679973d13f3d

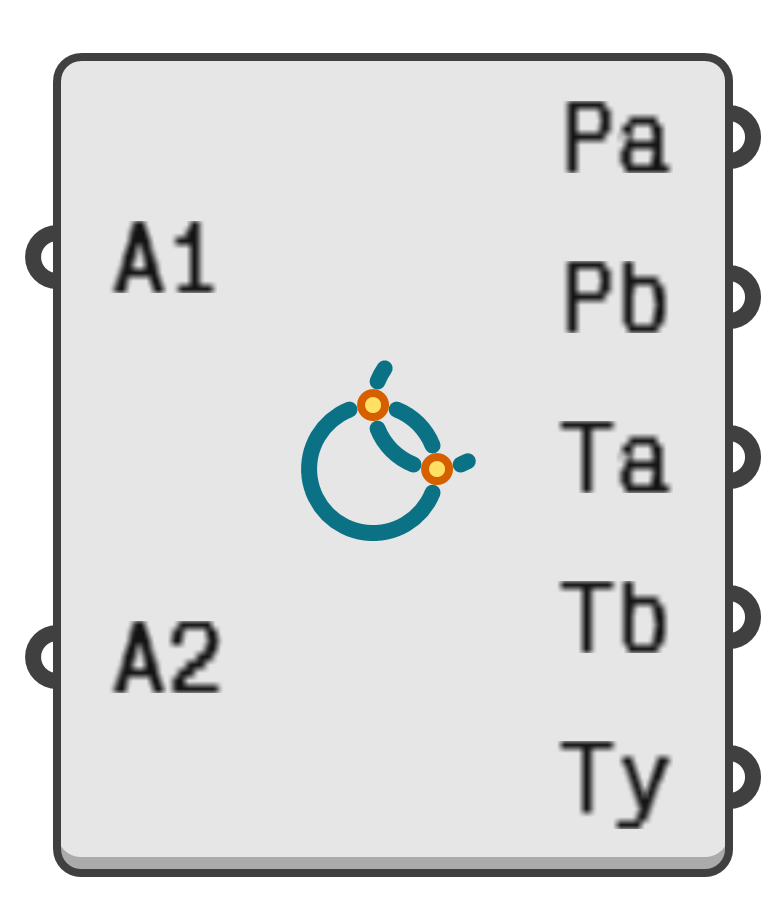

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the intersection points of two circular arcs.

Input parameters:

  1. A1 → First arc for intersection.
  2. A2 → Second arc for intersection.

Output parameters:

  1. Pa → First intersection point.
  2. Pb → Second intersection point.
  3. Ta → Parameter of the first intersection on arc 1.
  4. Tb → Parameter of the second intersection on arc 1.
  5. Ty → Type of intersection.
    • 0 → None
    • 1 → One Point
    • 2 → Two Points
    • 3 → Overlap
