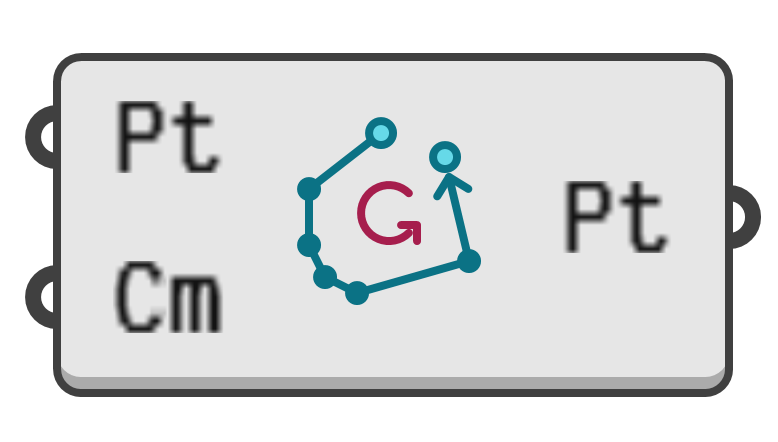

Cycle Points
00000000-c296-4fb7-9ba8-f2584df218b8
Cycle a list of point until the point with the specified property is the first one.
The cycling operation keeps the point order intact, but changes which point comes first. I.e. when a list composed of the elements [🍑,🍌,🍒,🍋,🍆] is cycled one step forwards, the first item goes to the second place, the second item to the third place, and so on. Ultimately the last item is moved to the start of the list: [🍆,🍑,🍌,🍒,🍋].
The possible criteria for picking the first item include the following:
| Value | Name | Info |
|---|---|---|
0 |
None | No cycling is performed. |
1 |
Minimum X | Point with the lowest x−coordinate. |
2 |
Minimum Y | Point with the lowest y−coordinate. |
3 |
Minimum Z | Point with the lowest z−coordinate. |
4 |
Maximum X | Point with the highest x−coordinate. |
5 |
Maximum Y | Point with the highest y−coordinate. |
6 |
Maximum Z | Point with the highest z−coordinate. |
7 |
Sharpest | Point with the smallest angle between both adjacent edges. |
9 |
Furthest | Point furthest away from the average of all points. |
10 |
Nearest | Point nearest to the average of all points. |
When two or more points are all equally 'the most true' for any given criterium, the final choice is more or less random.
