Mesh From Box
00000000-bf89-4757-920e-250e22d126c2

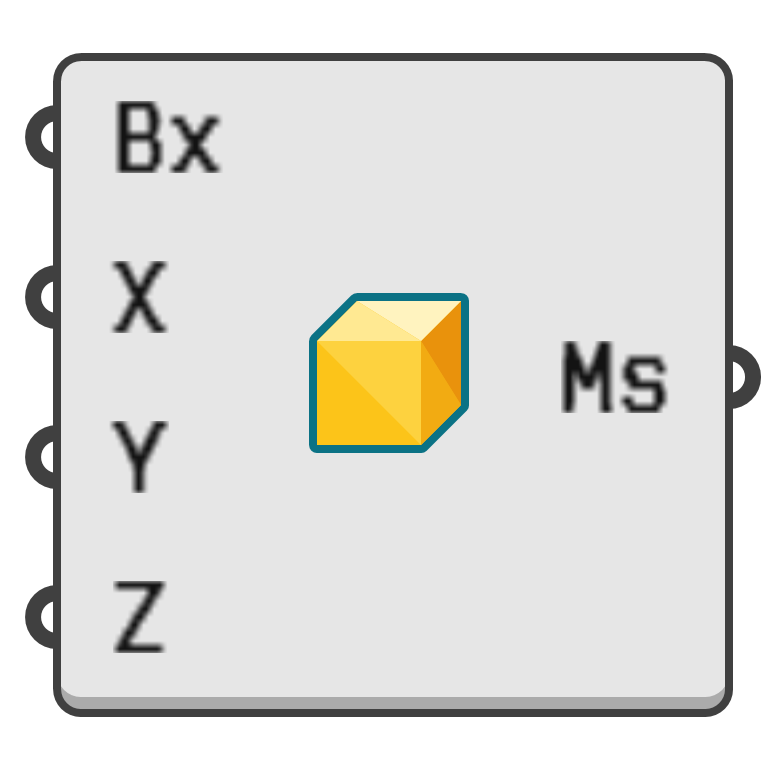

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a box-shaped mesh with a specific number of facets in each direction.

Input parameters:

  1. Bx → Box for mesh.
  2. X → Number of facets in the box x direction.
  3. Y → Number of facets in the box y direction.
  4. Z → Number of facets in the box z direction.

Output parameters:

  1. Ms → Box shaped mesh.
