Field From Functions
00000000-be3f-43db-97fc-b619f4916738

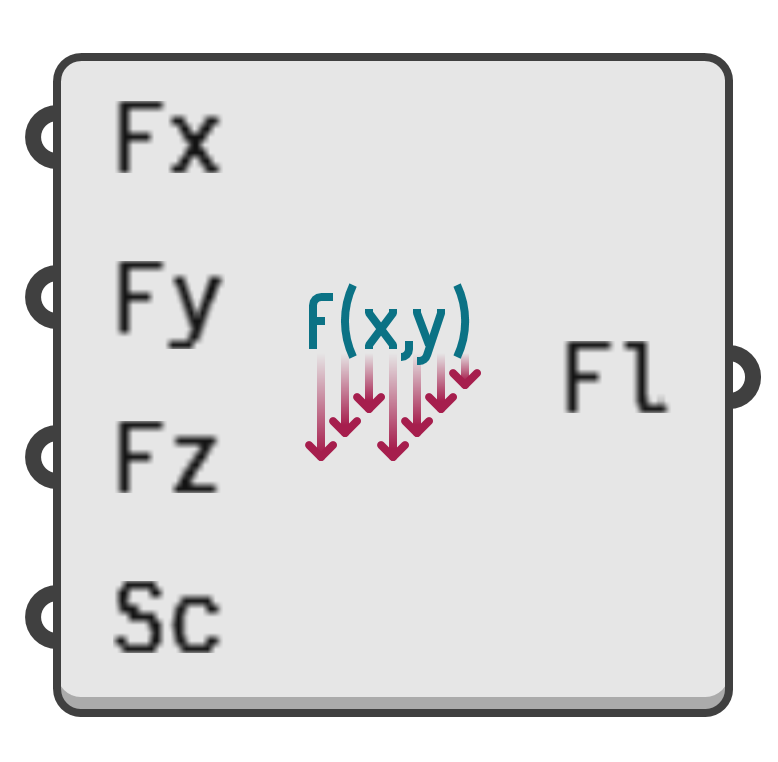

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a field out of x, y, and z coordinate functions.

Input parameters:

  1. Fx → Vector field component in the world X direction.
  2. Fy → Vector field component in the world Y direction.
  3. Fz → Vector field component in the world Z direction.
  4. Sc → If true, the component functions are added together to yield a scalar field. If false, the component functions encode the (x,y,z) values of a vector field.
    •  True → Scalar
    • False → Vector

Output parameters:

  1. Fl → Cartesian function field.
