ComponentAuto-generatedMesh
Mesh Vertex Map
00000000-bda9-4148-a8f3-3e4212fcc966

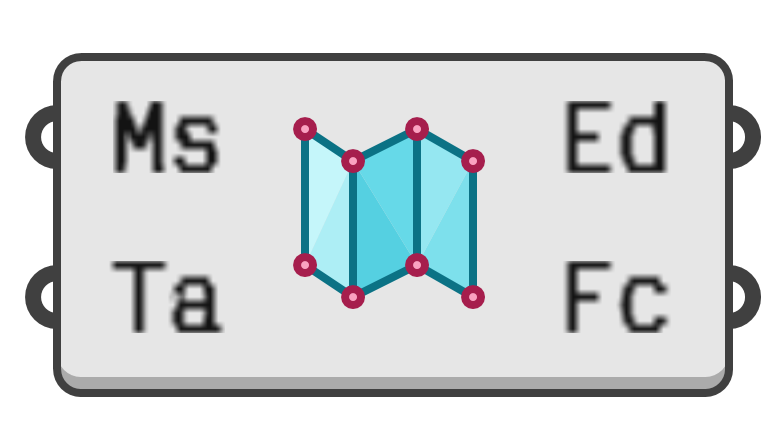

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a map from all mesh vertices to all edges and facets.

Input parameters:

  1. Ms → Mesh for vertex map extraction.
  2. Ta → Include mappings to edges and facets on the other side of an unwelded edge.
    •  True → Topological
    • False → Geometrical

Output parameters:

  1. Ed → For each vertex, the list of all edges that terminate there.
  2. Fc → For each vertex, the list of all facets that contain it.
