ComponentCurve
Line Span
00000000-b354-406a-aad4-295a098de6d4

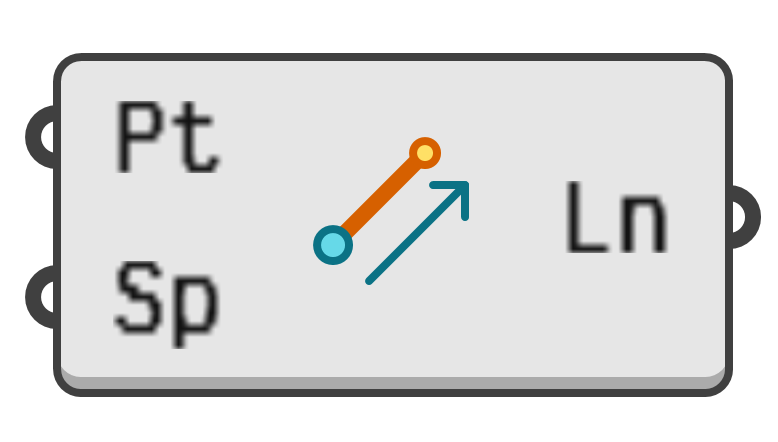

object preview

Create a finite line segment based on a starting point and a span vector. The span vector controls both the direction and length of the line.

The span input of this component is a vector field parameter rather than a vector parameter. This field will be evaluated at the line start point to yield the span vector.

Note that when the span vector has zero length, the line may be considered invalid in certain contexts as it will lack a tangent direction.

1
2
3

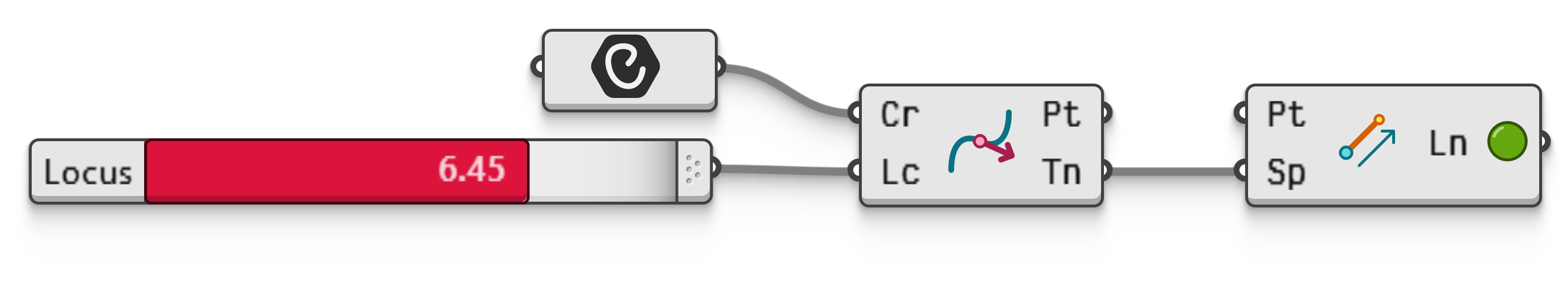

Example file LineSpan.ghz.Interactive in Grasshopper 2
Create a line from a start point and a span vector, which is copied from the tangent evaluation of a curve.
