Rectangle Pattern
00000000-b27e-41e3-aade-be1214713c7b

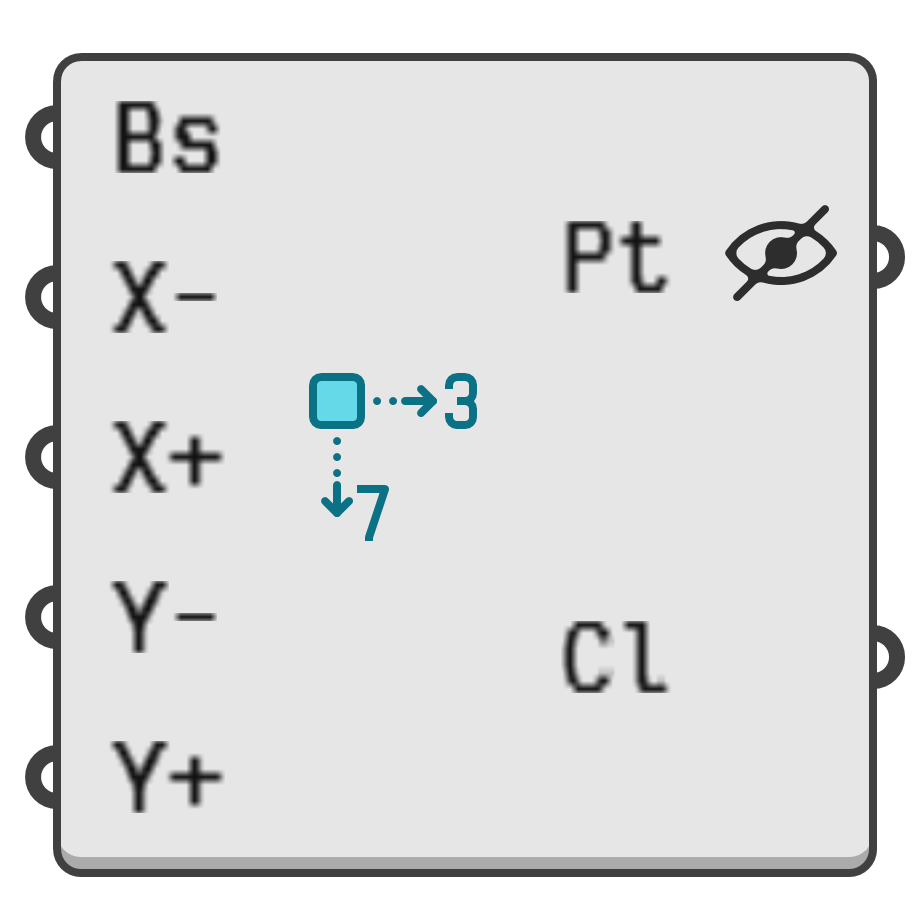

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Generate a two-dimensional grid by repeating a rectangular cell.

Input parameters:

  1. Bs → Rectangular base cell.
  2. X- → Number of repeats in the negative X direction.
  3. X+ → Number of repeats in the positive X direction.
  4. Y- → Number of repeats in the negative Y direction.
  5. Y+ → Number of repeats in the positive Y direction.

Output parameters:

  1. Pt → Points on the grid.
  2. Cl → Repeating grid cells.
