Tube Parameters
00000000-aef9-49ba-bace-8210d6b9c2e2
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

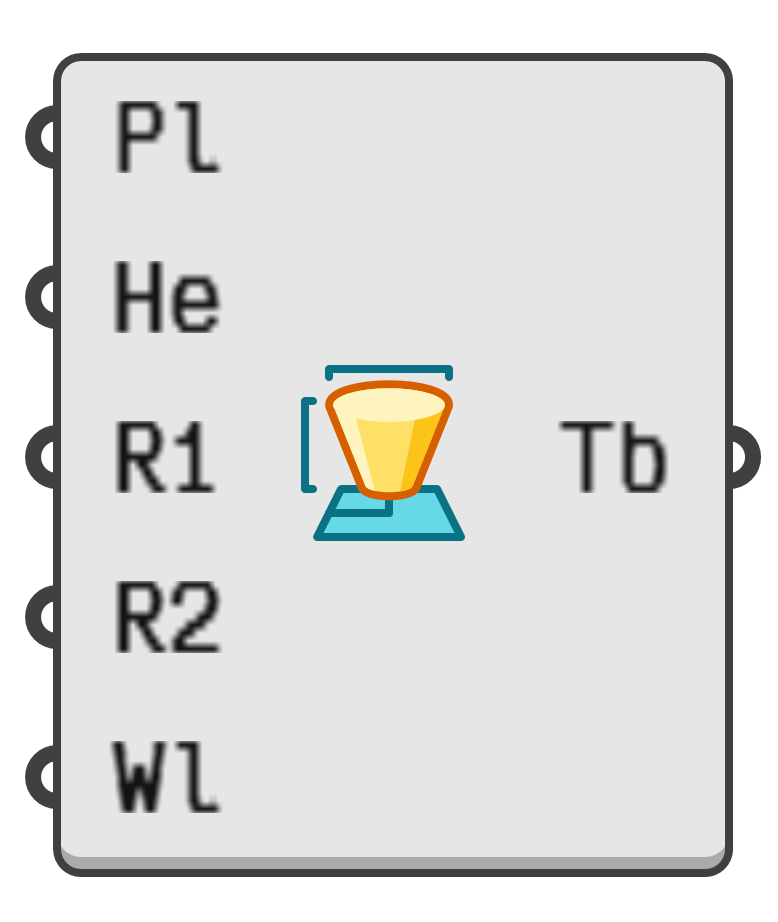

Create a tube from parameters.
- Pl → Base plane for tube.
- He → Height of tube above base plane.
- R1 → Radius of tube at base plane.
- R2 → Radius of tube at maximum height.
- Wl → Thickness of the tube walls.
- Tb → Tube defined by the parameters.
