Mesh Colours From Numbers
00000000-ab59-4479-9117-aa6b68a8d53e

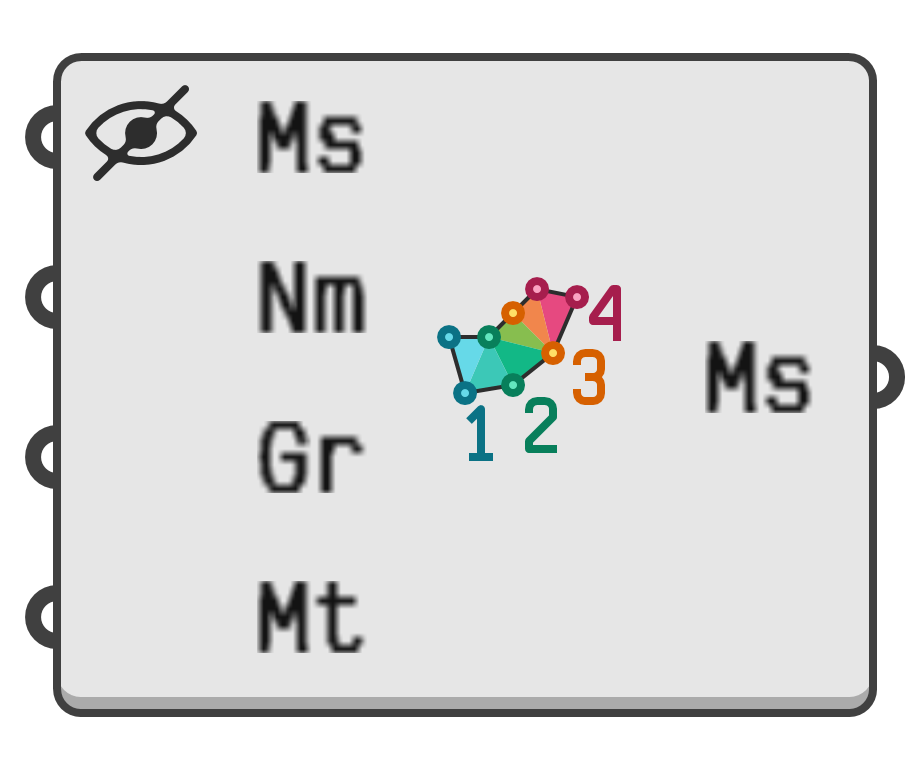

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Colour the vertices of a mesh by evaluating a given gradient.

Input parameters:

  1. Ms → Mesh to colour.
  2. Nm → List of numbers encoding the value of each vertex.
  3. Gr → Gradient to apply.
  4. Mt → Scaling method for stretching the gradient to the number distribution.
    • 0 → None
    • 1 → Limits
    • 2 → Standard Deviation (68%)
    • 3 → 2-Sigma Event (95%)
    • 4 → 3-Sigma Event (99%)
    • 5 → 4-Sigma Event (99.99%)
    • 6 → 5-Sigma Event (99.9999%)

Output parameters:

  1. Ms → Mesh with coloured vertices.
