Fillet By Angle
00000000-a9a0-4deb-9878-7038762cebde

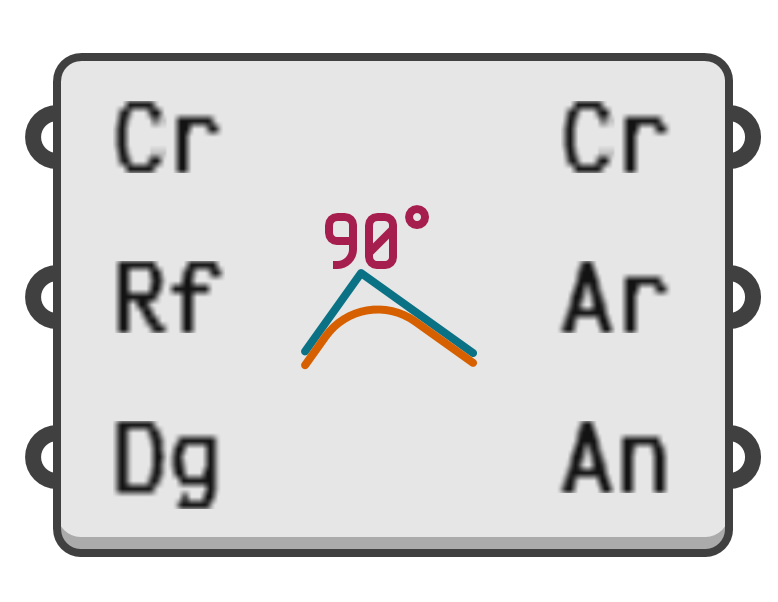

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Fillet all the corners of a curve based on their angle.

Input parameters:

  1. Cr → Curve to fillet.
  2. Rf → The function mapping corner angle to fillet radius. Note that concave corners have negative angles.
  3. Dg → Measure corner angles in degrees.

Output parameters:

  1. Cr → Filleted curve.
  2. Ar → Filleting arcs.
  3. An → Segment angles at each fillet.
