Loft From Curves
00000000-a57b-406c-bf41-a214df0ea382

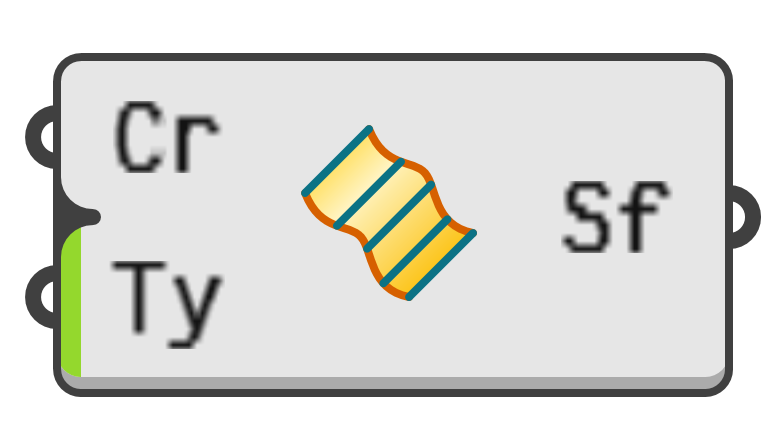

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a lofted surface which passes through given section curves.

Input parameters:

  1. Cr → Loft section curves.
  2. Ty → Loft type.
    • 1 → Loose
    • 2 → Normal
    • 3 → Tight
    • 4 → Uniform
    • 5 → Ruled
  3. Cl → If true, the lofted surfaces will wrap from the last to the first section curve.
  4. Pa → Optional start point of lofted surface.
  5. Pb → Optional end point of lofted surface.
  6. Rb → Optional rebuild control point count. If omitted, the resulting surface will not be rebuild.
  7. Rf → Optional refit tolerance. If omitted, the resulting surface will not be refitted.

Output parameters:

  1. Sf → Surface lofted through the section curves.
