Evaluate Sphere
00000000-a54f-4771-a37d-32d5088d8bcf

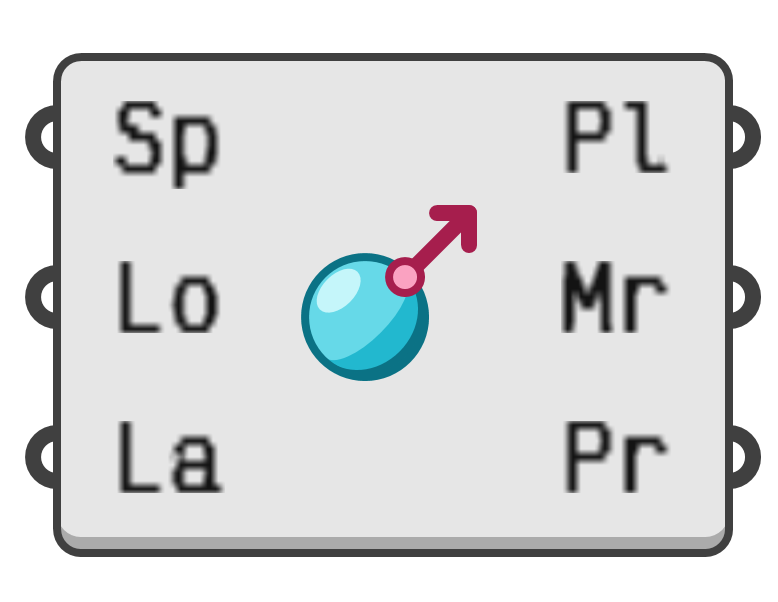

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute the tangent plane and lines of latitude and longitude of a sphere.

Input parameters:

  1. Sp → Sphere to evaluate.
  2. Lo → Longitudinal angle.
  3. La → Latitudinal angle.

Output parameters:

  1. Pl → Tangent plane at the angular coordinates.
  2. Mr → Meridian, or arc-of-longitude, at the angular coordinates.
  3. Pr → Parallel, or circle-of-latitude, at the angular coordinates.
