Collapse Particular Facets
00000000-a307-4736-974b-c478964b755b

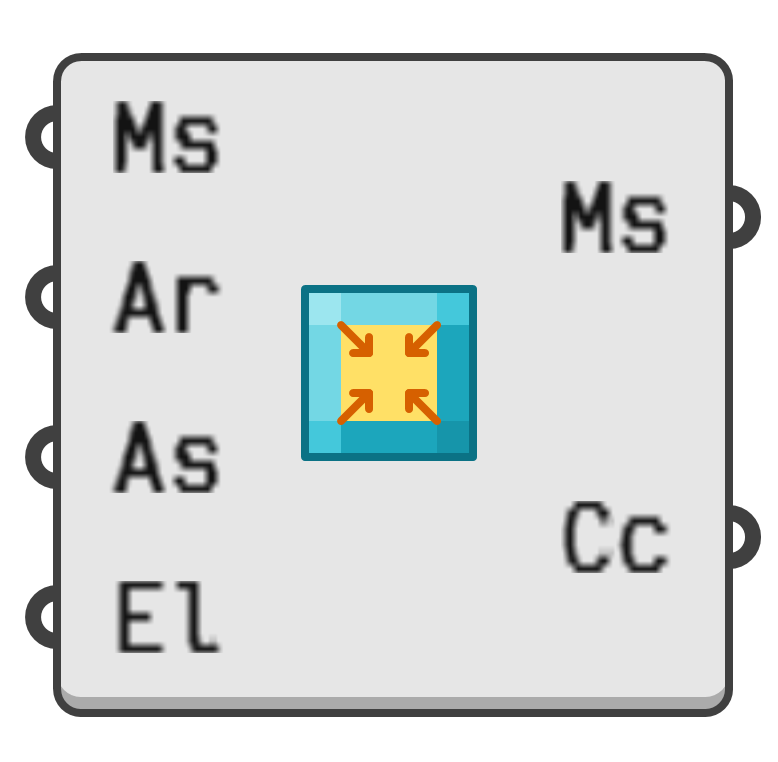

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Collapse mesh facets whose properties exceed given threshold values.

Input parameters:

  1. Ms → Mesh whose facets to collapse.
  2. Ar → Optional area limit. Facets with areas smaller than this limit will be collapsed.
  3. As → Optional aspect ratio limit. Facets with aspect ratios less than this limit will be collapsed.
  4. El → Optional edge length limit. Facets with edges whose lengths are smaller than this limit will be collapsed.

Output parameters:

  1. Ms → Mesh with collapsed facets
  2. Cc → Number of collapsed facets
