Ellipse From String
00000000-a2ef-41e2-8d56-737f82ebf11f

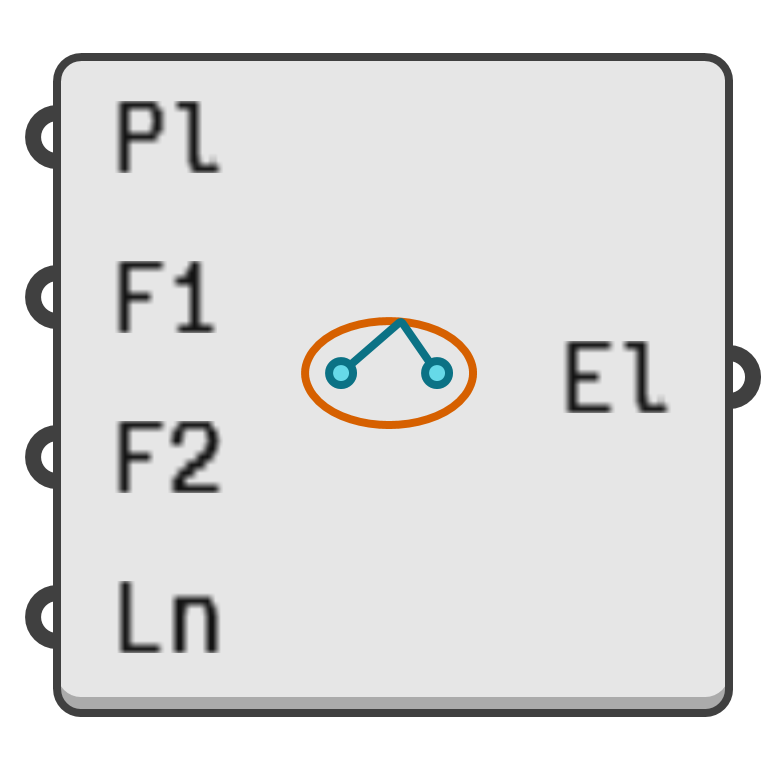

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create an ellipse out of focal points and the length of a string connecting both points.

Input parameters:

  1. Pl → Plane for ellipse.
  2. F1 → First focal point of ellipse.
  3. F2 → Second focal point of ellipse.
  4. Ln → Total length of the two line segments making up the string.

Output parameters:

  1. El → Ellipse from foci and string length.
