Cage From Surface
00000000-9e8d-4909-90fa-78e37d0791ce

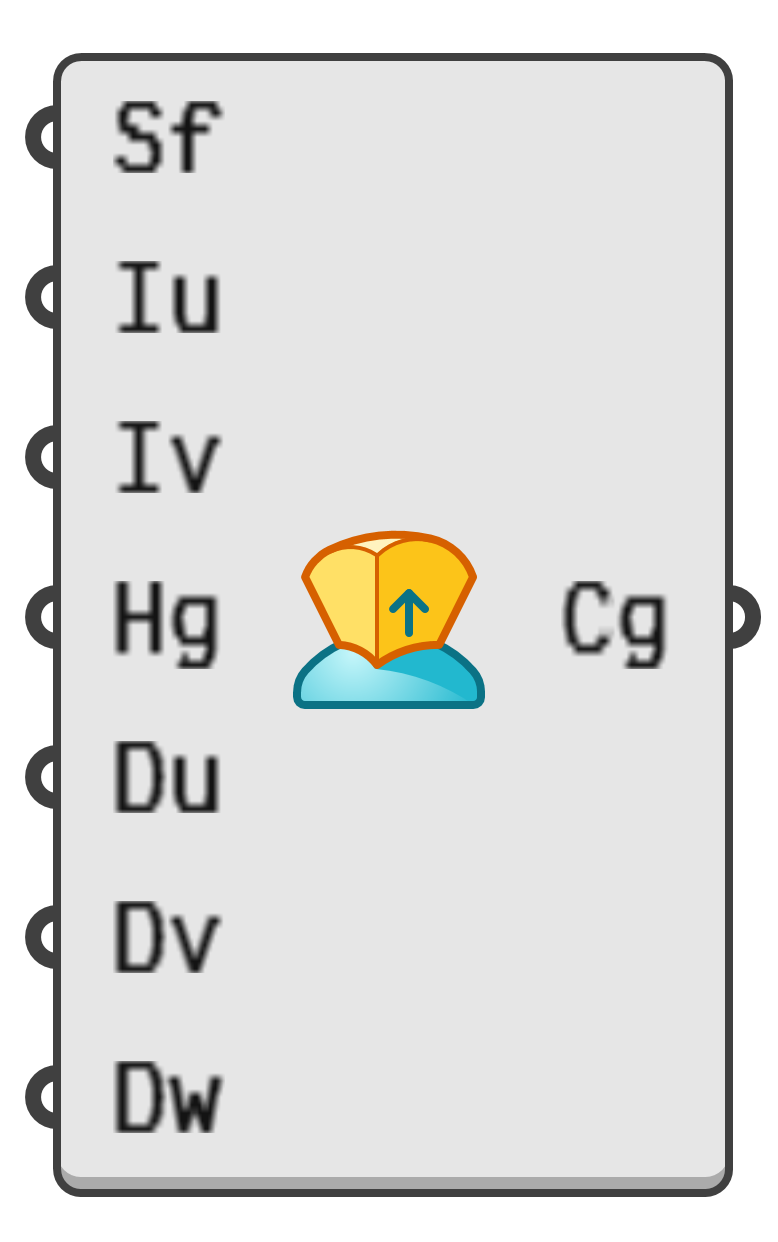

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a deformation cage on a single-face surface.

Input parameters:

  1. Sf → Surface to create cage on.
  2. Iu → U interval for the subsurface to create the cage on.
  3. Iv → V interval for the subsurface to create the cage on.
  4. Hg → Height of surface cage.
  5. Du → Degree in cage U direction, between 1 and 7.
  6. Dv → Degree in cage V direction, between 1 and 7.
  7. Dw → Degree in cage W direction, between 1 and 7.

Output parameters:

  1. Cg → Deformation cage on surface.
