Array Along Curve
00000000-9dbd-4536-9e89-9a786e1e3579

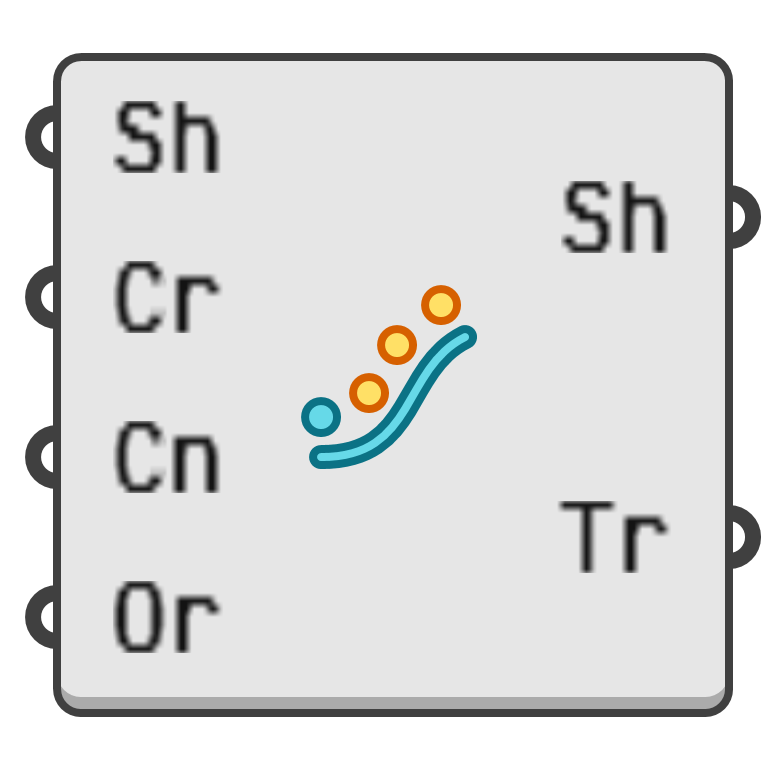

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create an array of transformations along a rail curve. If an input shape is provided, it will be transformed accordingly.

Input parameters:

  1. Sh → Optional shape to array.
  2. Cr → Rail curve.
  3. Cn → Number of transformed elements along the curve.
  4. Or → Orientation constraint for the arrayed shapes.
    • 0 → None
    • 1 → Free
    • 2 → Road-like
    • 3 → Stair-like

Output parameters:

  1. Sh → Arrayed shapes.
  2. Tr → List of transformations applied to each element in the array.
