Mesh Thickness
00000000-9b27-4ca4-8d81-b0d7798daafd

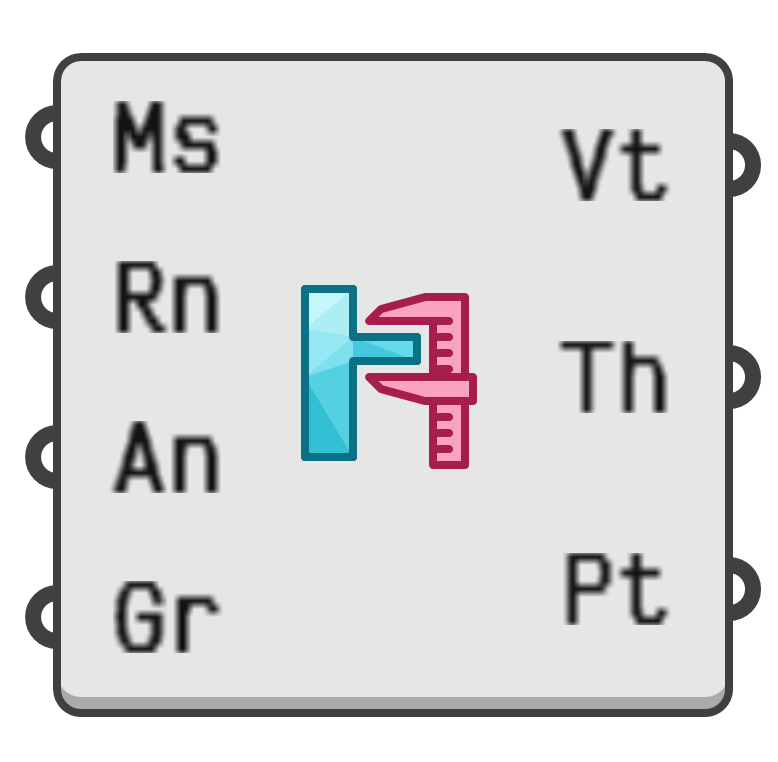

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the mesh vertices where the distance to the opposite side is within a given range.

Input parameters:

  1. Ms → Mesh to measure.
  2. Rn → Thickness range for outputs. Measurements outside of this range will be omitted.
  3. An → Angle at which a mesh feature is considered 'sharp'.
  4. Gr → Optional gradient for point colouring.

Output parameters:

  1. Vt → Vertex indices where the mesh thickness is within the given range.
  2. Th → Thickness at each vertex index.
  3. Pt → Points where the mesh thickness is within the given range.
