Project Point
00000000-97ed-4ebd-8b98-c3a3f8ec6714

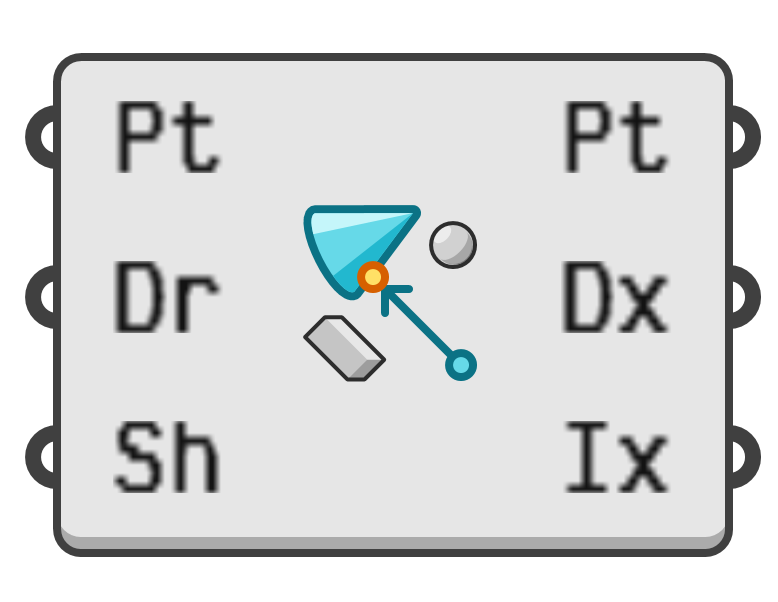

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Project a point onto a collection of shapes.

Input parameters:

  1. Pt → Point to project.
  2. Dr → Direction to project the point.
  3. Sh → Shapes to project onto.

Output parameters:

  1. Pt → Projected point.
  2. Dx → Distance between input point and projected point, or infinity if no object was hit.
  3. Ix → Index of the object that was projected onto.
