Principal Curvatures
00000000-94f7-4b4d-8615-bb44b2db54e9

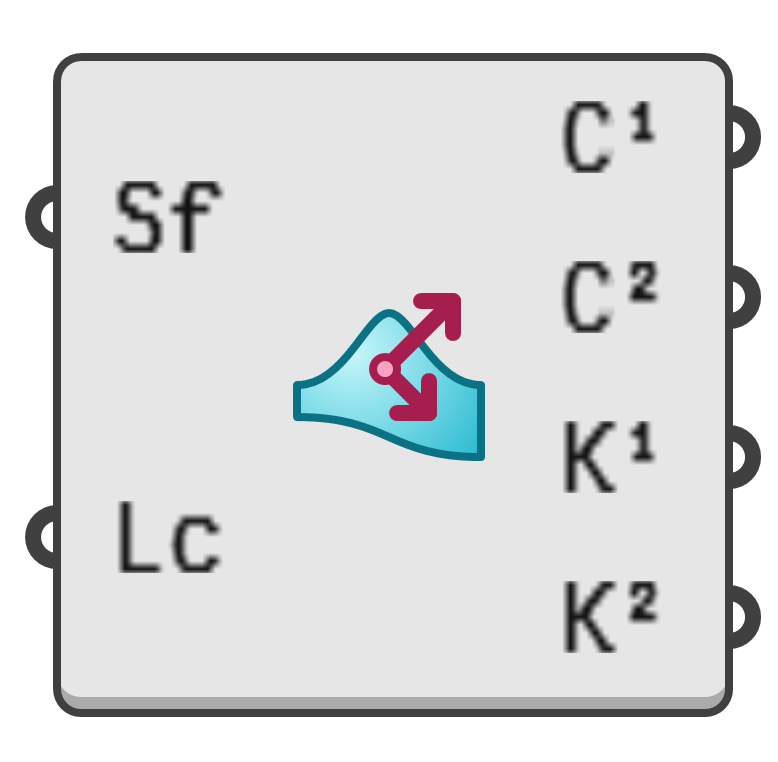

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute the principal curvatures at a surface locus.

Input parameters:

  1. Sf → Surface to evaluate.
  2. Lc → Evaluation locus.

Output parameters:

  1. C1 → Maximum (absolute) principal curvature.
  2. C2 → Minimum (absolute) principal curvature.
  3. K1 → Principal curvature direction corresponding to C¹.
  4. K2 → Principal curvature direction corresponding to C².
