Offset To Area
00000000-8f7b-4506-ab45-978e9aedb045

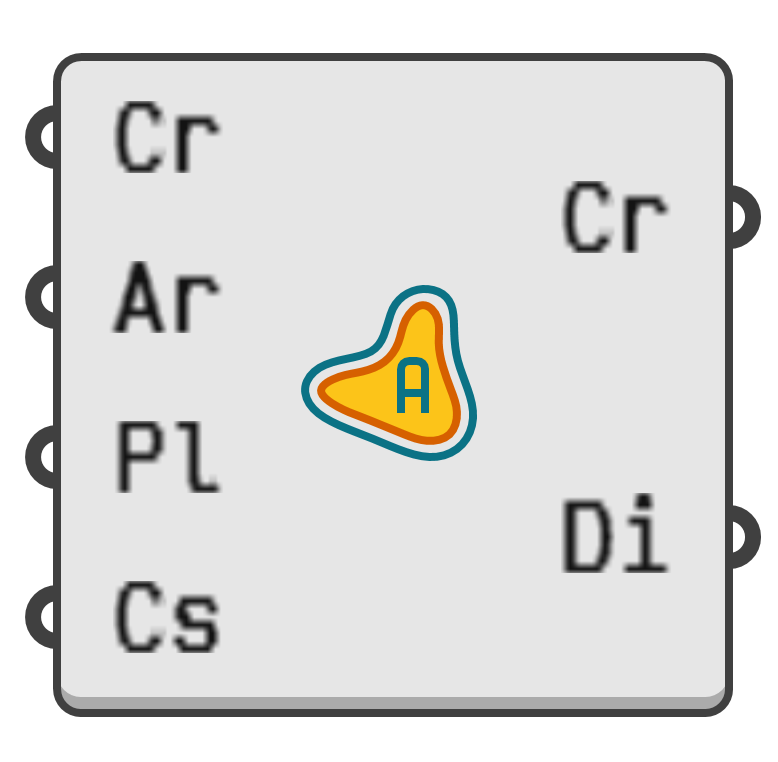

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Offset a closed curve until a given area is reached.

Input parameters:

  1. Cr → Curve to offset.
  2. Ar → Target area.
  3. Pl → Optional offset plane.
  4. Cs → Styling applied to kinky curve corners.
    • 0 → None
    • 1 → Sharp
    • 2 → Round
    • 3 → Smooth
    • 4 → Chamfer

Output parameters:

  1. Cr → Offset curve.
  2. Di → Offset distance used to obtain result.
