Mesh From Rectangle
00000000-8b90-4238-8364-4fc4a003fb75

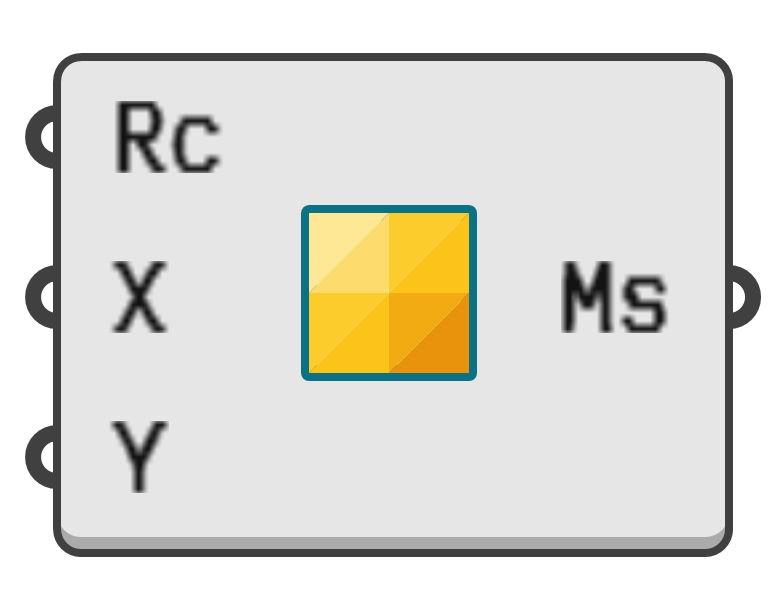

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a rectangular mesh with a specific number of rows and columns.

Input parameters:

  1. Rc → Rectangular boundary for mesh.
  2. X → Number of facets in the x direction.
  3. Y → Number of facets in the y direction.

Output parameters:

  1. Ms → Rectangular mesh.
