Surface Control Points
00000000-89b3-4b4b-a125-3a363994d964

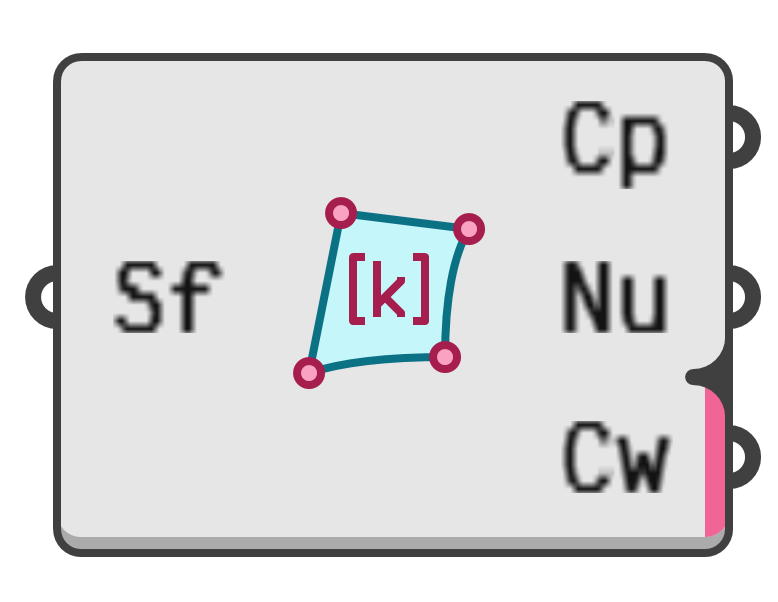

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Get the control-points, weights and knots of a single NURBS surface.

Input parameters:

  1. Sf → Surface to analyse.

Output parameters:

  1. Cp → Surface control points.
  2. Nu → Number of control points in the surface U direction.
  3. Cw → Weights of control points.
  4. Ku → Surface knot vector in the U direction.
  5. Du → Surface degree in the U direction.
  6. Kv → Surface knot vector in the V direction.
  7. Du → Surface degree in the V direction.
