Surface Edge Categories
00000000-84dc-43a6-be04-d17b41ff1537

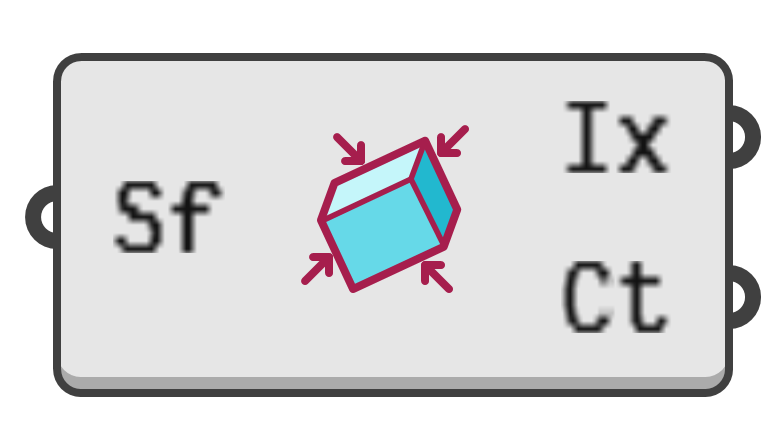

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

List and categorise all edges of a surface.

Input parameters:

  1. Sf → Surface to analyse.

Output parameters:

  1. Ix → Indices of all edges.
  2. Ct → Topological category of each edge.
    • 0 → Naked
    • 1 → Interior
    • 2 → NonManifold
