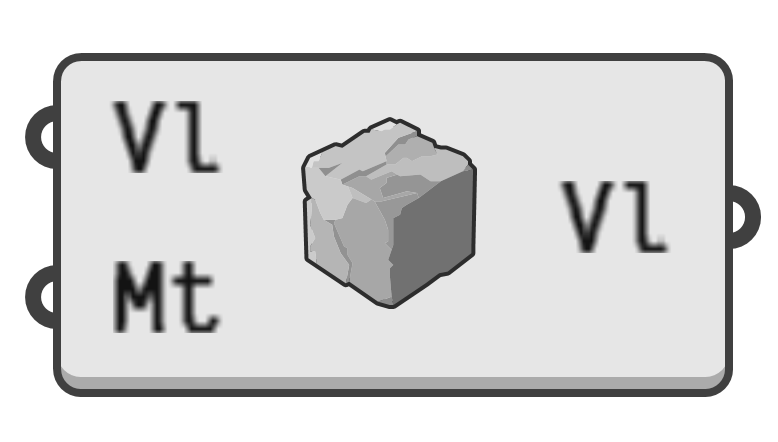

Assign Physics·Material

00000000-8343-4776-9a8b-3e568dc9d5e5

This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Assign the 'Physics.Material' meta datum to a value.

Input parameters:

Vl → Value to assign meta data to.
Mt → Material to assign.
- 0 → Mild Steel
- 1 → Tool Steel
- 2 → Stainless 304
- 3 → Stainless 316
- 4 → Cast Iron
- 5 → Wrought Iron
- 6 → Aluminium 6061
- 7 → Aluminium 7075
- 8 → Aluminium 1100
- 9 → Copper
- 10 → Brass
- 11 → Bronze
- 12 → Titanium (Grade 2)
- 13 → Titanium (Grade 5)
- 14 → Zinc
- 15 → Lead
- 16 → Nickel
- 17 → Magnesium
- 18 → ABS
- 19 → Acrylic PMMA
- 20 → Polycarbonate
- 21 → Polyethylene HDPE
- 22 → Polyethylene LDPE
- 23 → Polypropylene
- 24 → PTFE Teflon
- 25 → PET
- 26 → PETG
- 27 → PLA
- 28 → ASA
- 29 → HIPS
- 30 → TPU
- 31 → Nylon 6
- 32 → Nylon 66
- 33 → PEEK
- 34 → PVC
- 35 → Polystyrene
- 36 → Epoxy Resin
- 37 → Phenolic Resin
- 38 → Melamine
- 39 → Oak
- 40 → Maple
- 41 → Teak
- 42 → Walnut
- 43 → Pine
- 44 → Spruce
- 45 → Cedar
- 46 → Birch
- 47 → Beech
- 48 → Bamboo
- 49 → Cork
- 50 → Marble
- 51 → Sandstone
- 52 → BrickClay
- 53 → Limestone
- 54 → Granite
- 55 → Slate
- 56 → Basalt
- 57 → Concrete (Normal)
- 58 → Concete (High Strength)
- 59 → Float Glass
- 60 → Tempered Glass
- 61 → Laminated Glass
- 62 → Borosilicate Glass
- 63 → Acrylic Glass
- 64 → Porcelain
- 65 → Stoneware
- 66 → Earthenware
- 67 → Alumina Ceramic
- 68 → Silicon Carbide
- 69 → Zirconia Ceramic
- 70 → CFRP Carbon Fibre
- 71 → GFRP Fibreglass
- 72 → Kevlar
- 73 → MDF
- 74 → Plywood
- 75 → OSB
- 76 → Gypsum Plaster
- 77 → Gypsum Board
- 78 → Fibreglass Insulation
- 79 → Mineral Wool
- 80 → Rubber (Natural)
- 81 → Rubber (Synthetic)

Output parameters:

Vl → Value with assigned 'Physics.Material' meta datum.
