Curve Striation
00000000-82fd-4edc-a59f-6c0f9d060d7b

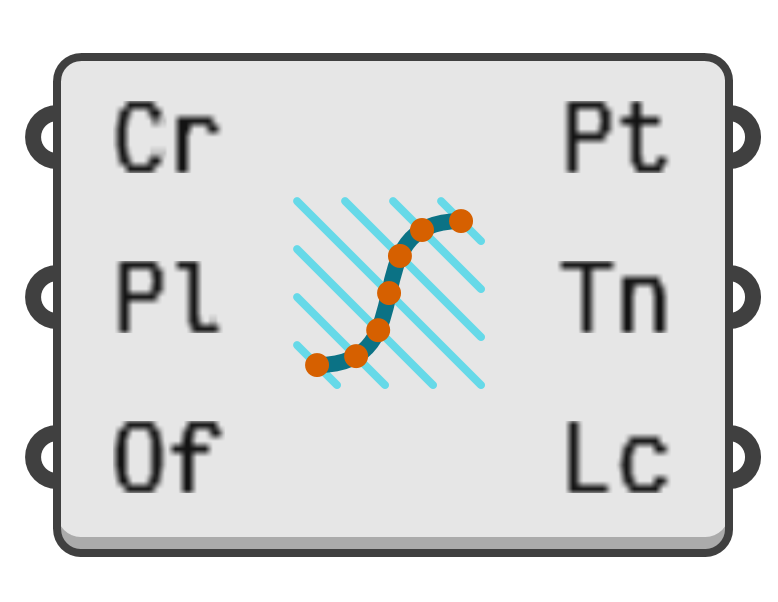

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the points of a curve intersected by a series of parallel planes. This component outputs all points as a flat list.

Input parameters:

  1. Cr → Curve to divide.
  2. Pl → Contour base plane.
  3. Of → Spacing between contouring planes.

Output parameters:

  1. Pt → Points grouped according to their contour planes.
  2. Tn → Tangent vectors at contour points.
  3. Lc → Curve loci at contour points.
