Edge Categories
00000000-828d-4aba-97e9-8eb6c2cb6bf9
object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Group the edges of a mesh into various mutually exclusive categories.

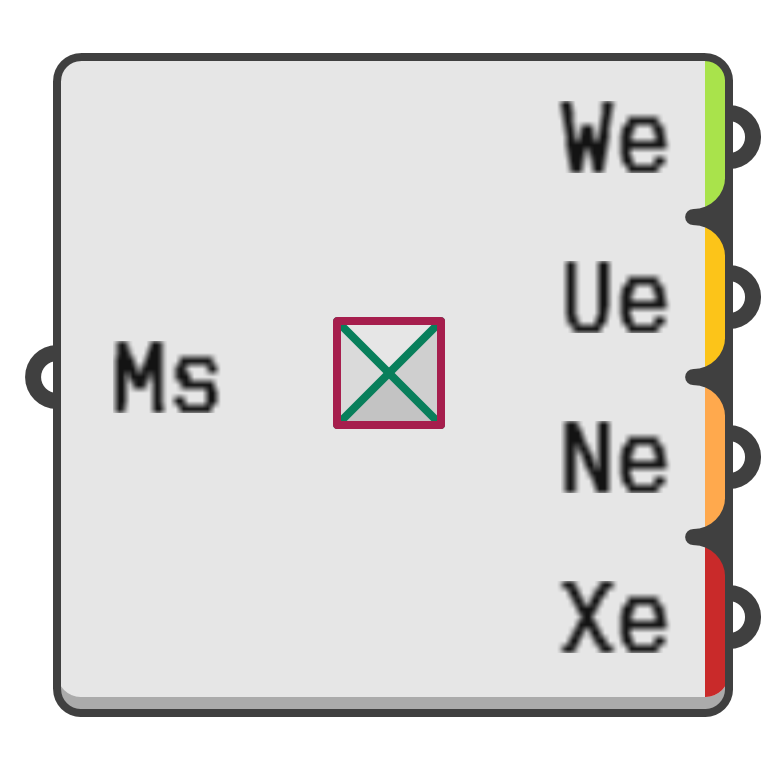

Input parameters:

  1. Ms → Mesh whose edges to categorise.

Output parameters:

  1. We → Edges with two adjacent facets and no stacked vertices.
  2. Wi → Indices of edges with two adjacent facets and no stacked vertices.
  3. Ue → Edges with two adjacent facets and stacked vertices on one or both ends.
  4. Ui → Indices of edges with two adjacent facets and stacked vertices at one or both ends.
  5. Ne → Edges with only a single adjacent facet.
  6. Ni → Indices of edges with only a single adjacent facet.
  7. Xe → Edges with three or more adjacent facets.
  8. Xi → Indices of edges with three or more adjacent facets.
