SubD Edges
00000000-815a-4608-ada1-4f8b8e601f44

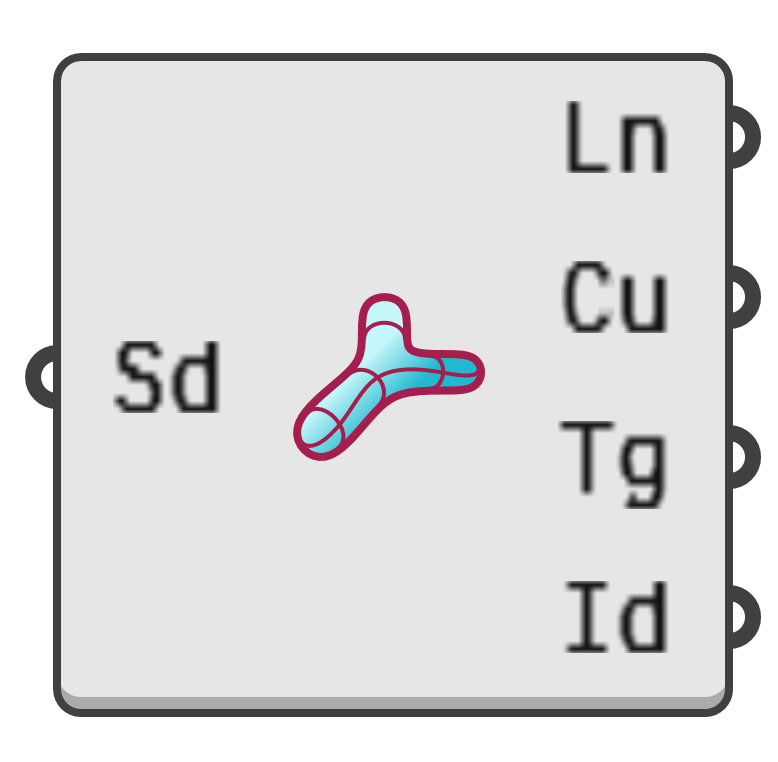

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract all edge data from a SubD.

Input parameters:

  1. Sd → Subdivision surface to analyse.

Output parameters:

  1. Ln → Lines in the control-polygon corresponding to all edges.
  2. Cu → Curves on the subdivision limit surface corresponding to all edges.
  3. Tg → Tag descriptors of all edges.
  4. Id → Identifiers of all edges.
