Evaluate Rectangle
00000000-7fe2-4934-99dc-75fb18cc3e4b

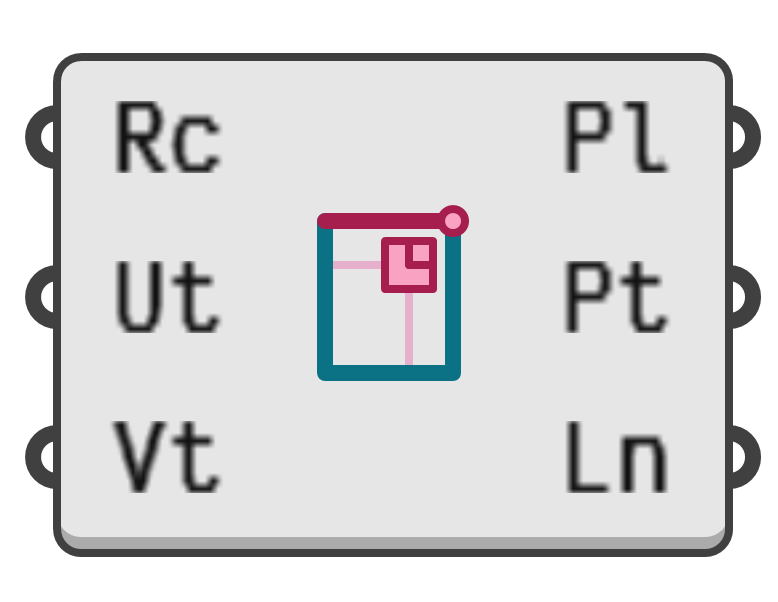

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Measure a rectangle at normalised (u,v) coordinates.

Input parameters:

  1. Rc → Rectangle to measure.
  2. Ut → Normalised u parameter, along the width.
  3. Vt → Normalised v parameter, along the height.

Output parameters:

  1. Pl → Plane at (u,v) parameters.
  2. Pt → Rectangle corner closest to (u,v) parameters.
  3. Ln → Edge closest to (u,v) parameters.
