Subdivide Mesh
00000000-7821-40a8-a163-aedf27163144

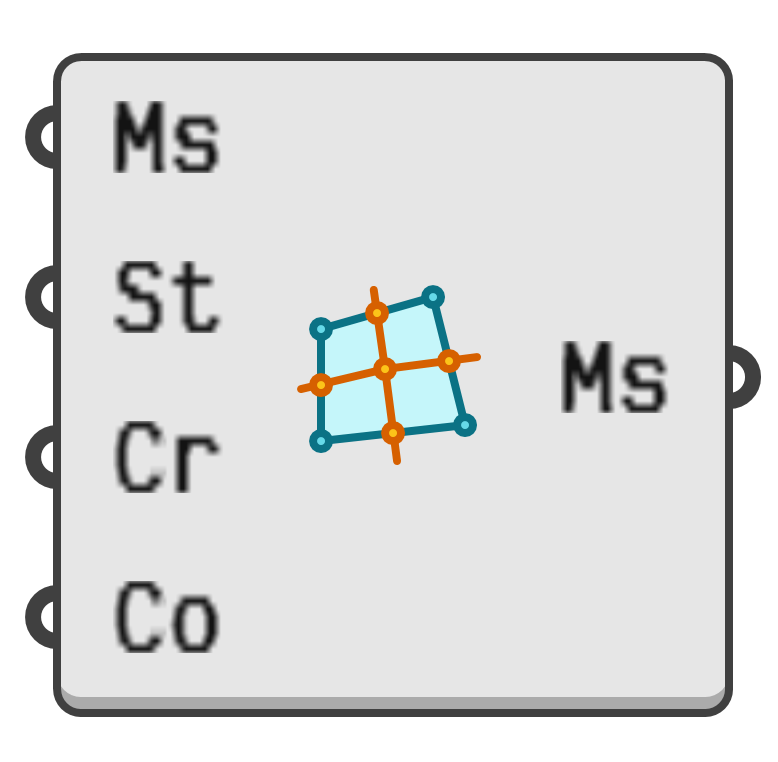

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Apply a subdivision scheme to an existing mesh.

Input parameters:

  1. Ms → Mesh to subdivide.
  2. St → Number of subdivision steps. Each additional step approximately quadruples the number of facets in a mesh.
  3. Cr → Retain the unwelded creases in the input mesh.
    •  True → Retain
    • False → Ignore
  4. Co → Specify the angle, above which convex corners of the input mesh boundary will be retained.

Output parameters:

  1. Ms → Subdivided mesh.
