Triangle From Elevation

00000000-6c05-4829-a558-9dada4145eb3

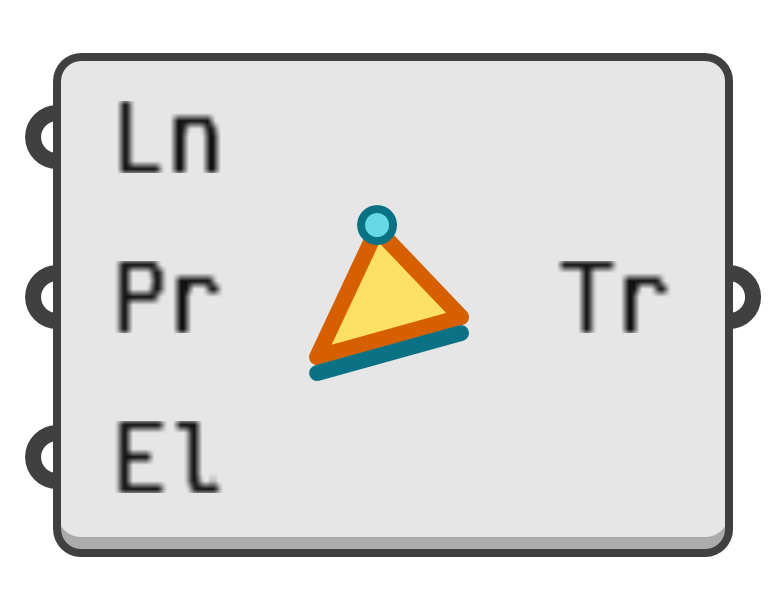

object preview

This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a vertical triangle out of a base line and an elevation.

Input parameters:

Ln → Triangle base line.
Pr → Positional parameter along the base line.
El → Tip elevation above the parameter position.

Output parameters:

Tr → Triangle from base line and tip position.
