Graph Property
00000000-61e7-4fc2-8417-b9b08a9c0a84

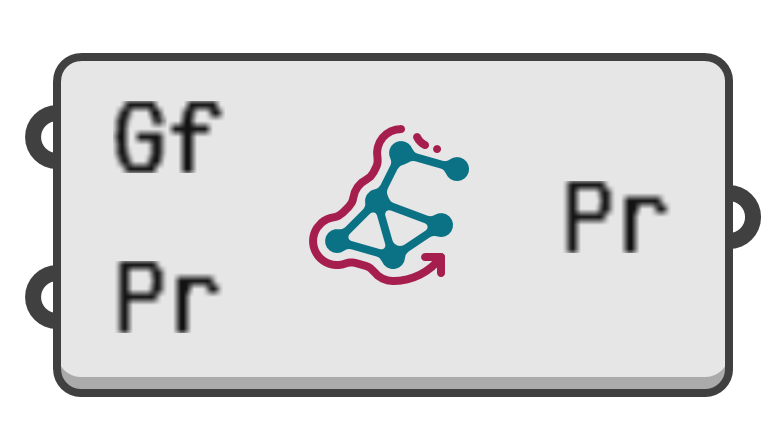

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute a given property of a graph.

Input parameters:

  1. Gf → Graph to measure.
  2. Pr → Property to measure.
    • 10 → Total Nodes
    • 11 → Isolated Nodes
    • 12 → Terminal Nodes
    • 13 → Transit Nodes
    • 14 → Junction Nodes
    • 15 → Source Nodes
    • 16 → Sink Nodes
    • 17 → Branch Nodes
    • 18 → Cycle Nodes
    • 19 → Minimum Valence
    • 20 → Maximum Valence
    • 30 → Total Edges
    • 31 → One-Way Edges
    • 32 → Two-Way Edges
    • 38 → Branch Edges
    • 39 → Cycle Edges
    • 50 → Total Length
    • 51 → One-Way Length
    • 52 → Two-Way Length
    • 53 → Branch Length
    • 54 → Cycle Length
    • 55 → Shortest Edge
    • 56 → Longest Edge
    • 70 → Disjointness
    • 71 → Disjoint Count

Output parameters:

  1. Pr → Requested graph property.
