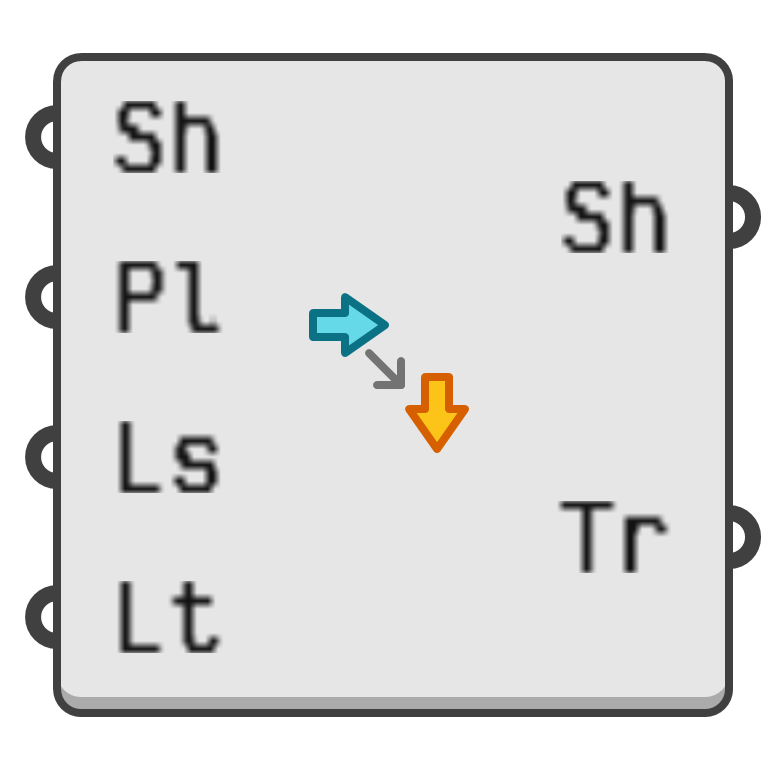

Orient 2D
00000000-5ed2-4439-ac18-c36c1576fa7a
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Create an orientation transformation from one axis to another. A two-dimensional orientation consists of translational, rotational, and dilational aspects. If an input shape is provided, it will be transformed accordingly.
- Sh → Optional shape to orient.
- Pl → Plane for two-dimensional orient transformation.
- Ls → Initial axis for orient transformation.
- Lt → Final axis for orient transformation.
- Sh → Shape with applied orientation transformation.
- Tr → Orientation transformation.
