Points To File
00000000-5e21-4c9a-bf3d-7c1a2b9e6f44

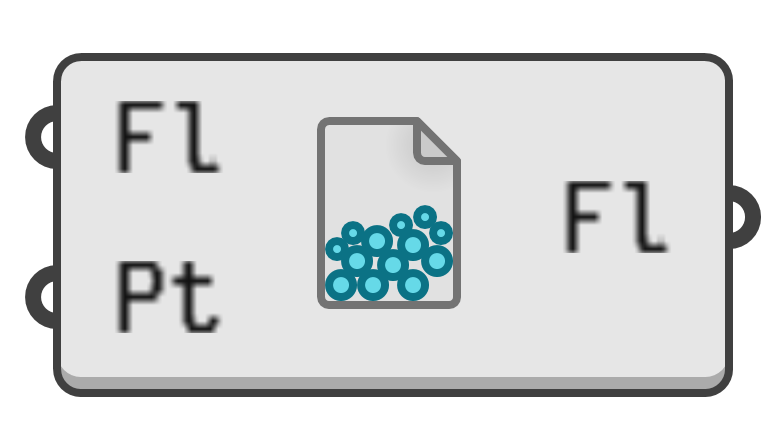

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Export point coordinates to a variety of text and geographic file formats.

Input parameters:

  1. Fl → Absolute path of the file to write.
  2. Pt → Points to export. Their meta data (name, description, attributes) is written where the format allows.
  3. Ft → Output file format. Leave on Auto to choose from the file extension.
    • 0 → Auto
    • 1 → Delimited Text
    • 2 → KML
    • 3 → GeoJSON
    • 4 → GPX
    • 5 → LandXML
    • 6 → WKT
  4. Dl → Column delimiter for delimited text formats. Defaults to a comma.
  5. Hd → Write a header row for delimited text formats.

Output parameters:

  1. Fl → Path of the file that was written.
