Surface Interior Domains
00000000-5b39-45c0-8ebb-c2437985c63f

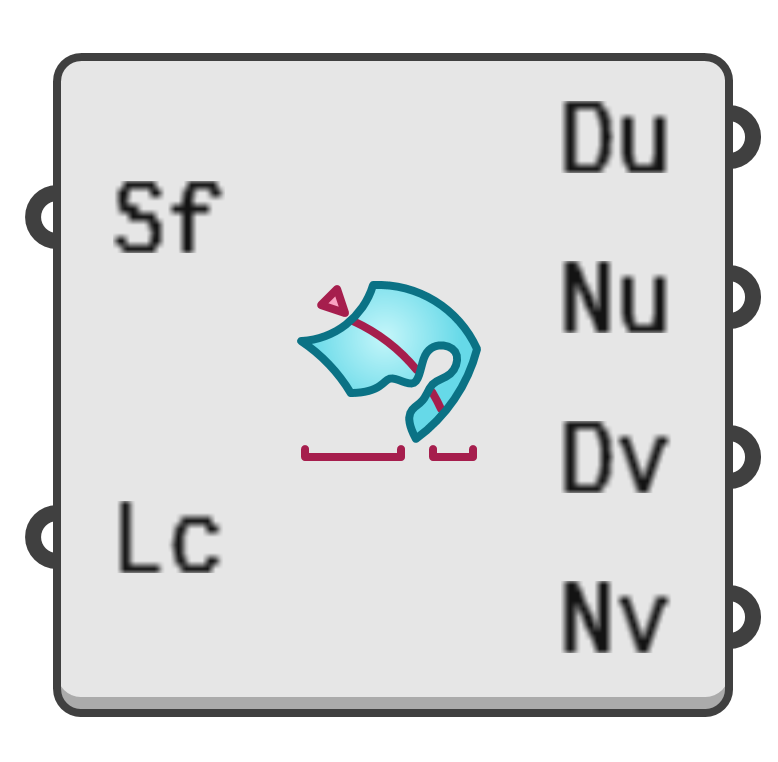

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the domains on the interior of a natural or trimmed surface, starting at a given locus.

Input parameters:

  1. Sf → Surface for domain extraction in the U and V directions.
  2. Lc → Surface locus.

Output parameters:

  1. Du → Parameter domains in the surface U direction.
  2. Nu → Index of interior U domain nearest to the given locus.
  3. Dv → Parameter domains in the surface V direction.
  4. Nv → Index of interior V domain nearest to the given locus.
