Sheet From Curve
00000000-5a0d-4502-ac6c-cf0e35cdd696

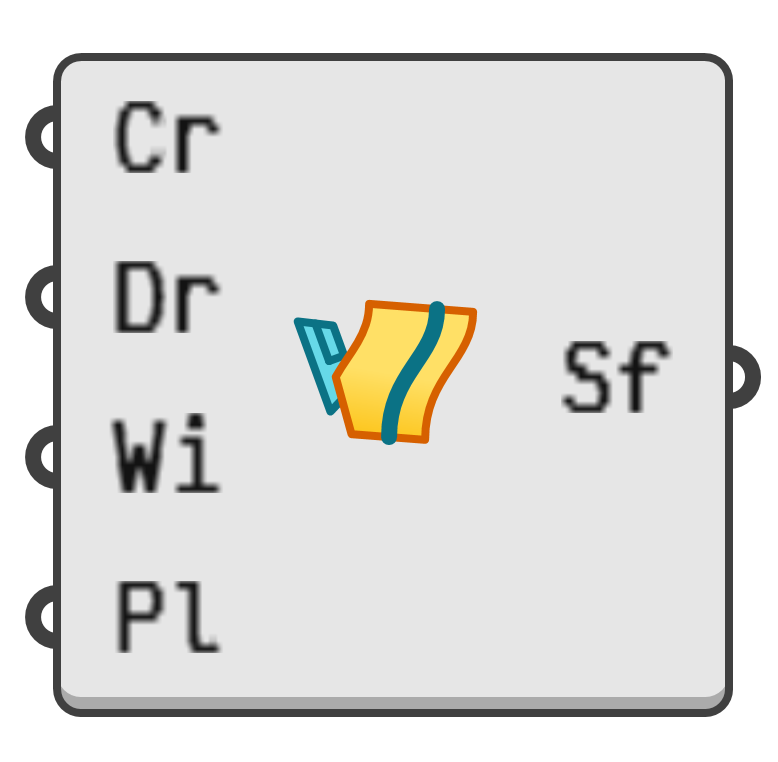

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a sheet-like surface from a spine curve.

Input parameters:

  1. Cr → Sheet spine curve.
  2. Dr → Direction of the non-bending portion of the sheet.
  3. Wi → Width of sheet along the non-bending direction.
  4. Pl → Optional cutting planes for sheet edges.

Output parameters:

  1. Sf → Sheet surface from spine curve and non-bending direction.
