ComponentAuto-generatedMesh
Mesh Facets
00000000-5706-4d87-980a-a8746d26ebc1

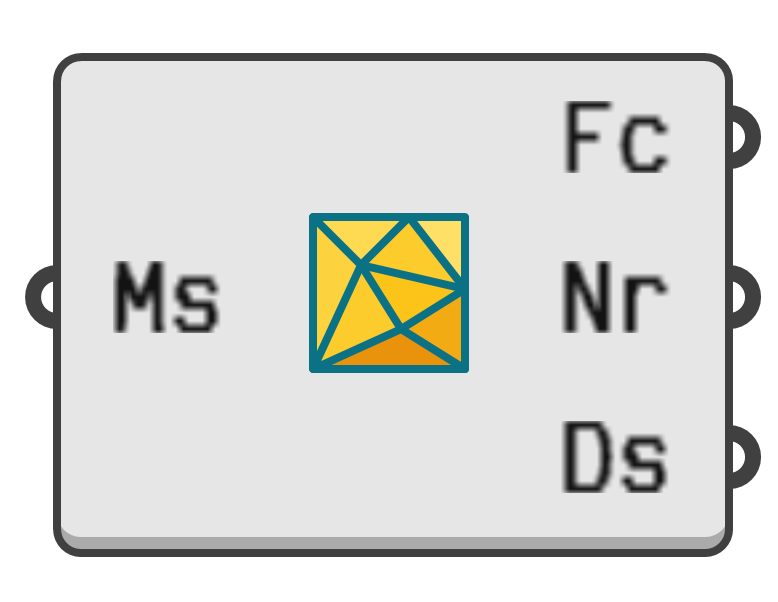

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the corner indices, normals and descriptions of all mesh facets.

Input parameters:

  1. Ms → Mesh to extract elements from.

Output parameters:

  1. Fc → Mesh facets.
  2. Nr → Facet normals.
  3. Ds → Facet description, with various properties shown as text tags separated by commas.
