Delaunay 3D
00000000-5682-4f24-ad1b-8ba39584cdbe

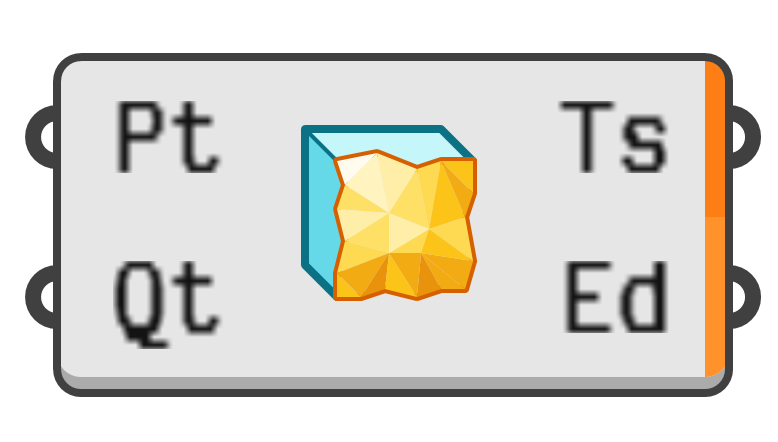

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute the Delaunay tetrahedralisation for a set of points in 3d space.

Input parameters:

  1. Pt → Points to tetrahedralise.
  2. Qt → Minimum quality threshold for tetrahedra ranging from 0 to 1. Tetrahedra with quality below this value will be removed from the output.

Output parameters:

  1. Ts → Delaunay tetrahedra meshes.
  2. Ed → Delaunay edges as lines.
  3. Ei → Indices of the edge ends in the input point list.
  4. Vn → Indices of the neighbouring vertices for each vertex in the input point list.
  5. Ti → Indices of the vertices of each tetrahedron in the input point list.
  6. Tn → For each tetrahedron, the indices of the four neighbouring tetrahedra, or -1 if it is a boundary face.
