Surface Pooling
00000000-526a-4ada-8bad-5fae22e27dfe

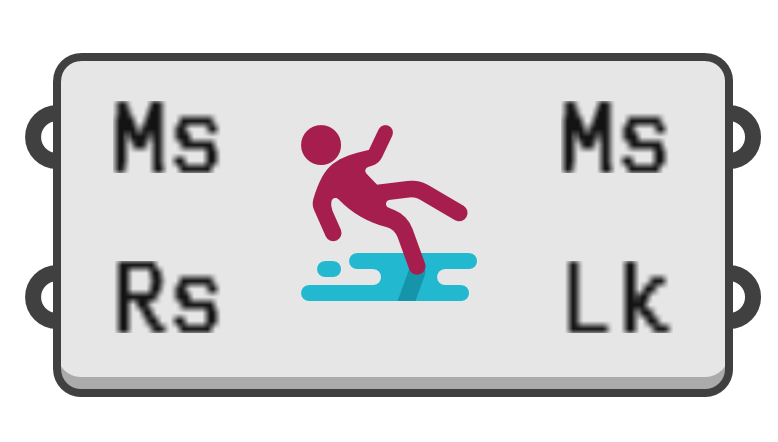

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Douse a mesh in rain and fill all depressions.

Input parameters:

  1. Ms → Mesh to douse.
  2. Rs → Output surface type.
    • 0 → Shores
    • 1 → Dry Parts
    • 2 → Top Surface
    • 3 → Projected Top Surface
    • 4 → Lake Tops
    • 5 → Lake Bottoms
    • 6 → Lake Volumes

Output parameters:

  1. Ms → Mesh results of pooling analysis.
  2. Lk → Boundary curves of all shores.
