Orient Plane
00000000-4bd3-431a-a150-063ba61f63fa

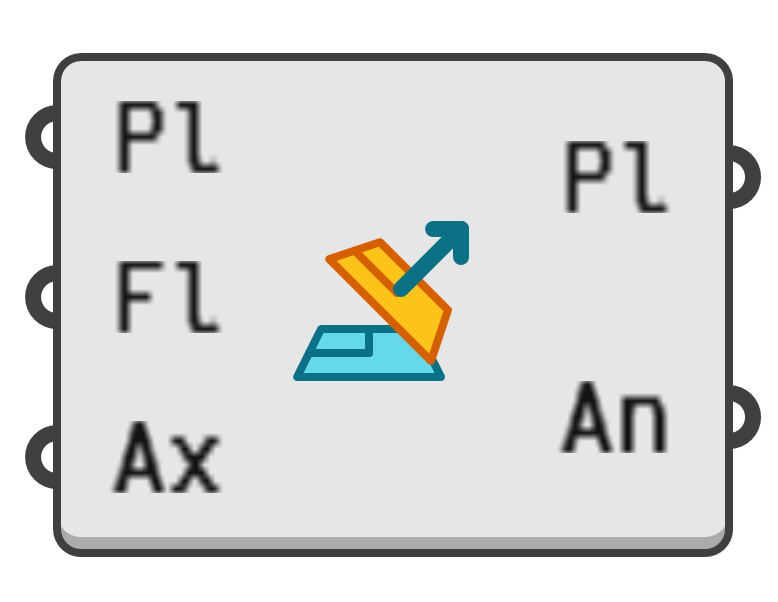

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Align a plane with a direction by minimally rotating one of its axes.

Input parameters:

  1. Pl → Plane to align.
  2. Fl → Guiding direction for plane alignment.
  3. Ax → Axis to align.
    • 0 → X-Axis
    • 1 → Y-Axis
    • 2 → Z-Axis
    • 3 → Anti-Normal

Output parameters:

  1. Pl → Aligned plane.
  2. An → Applied rotation angle.
